Product Description

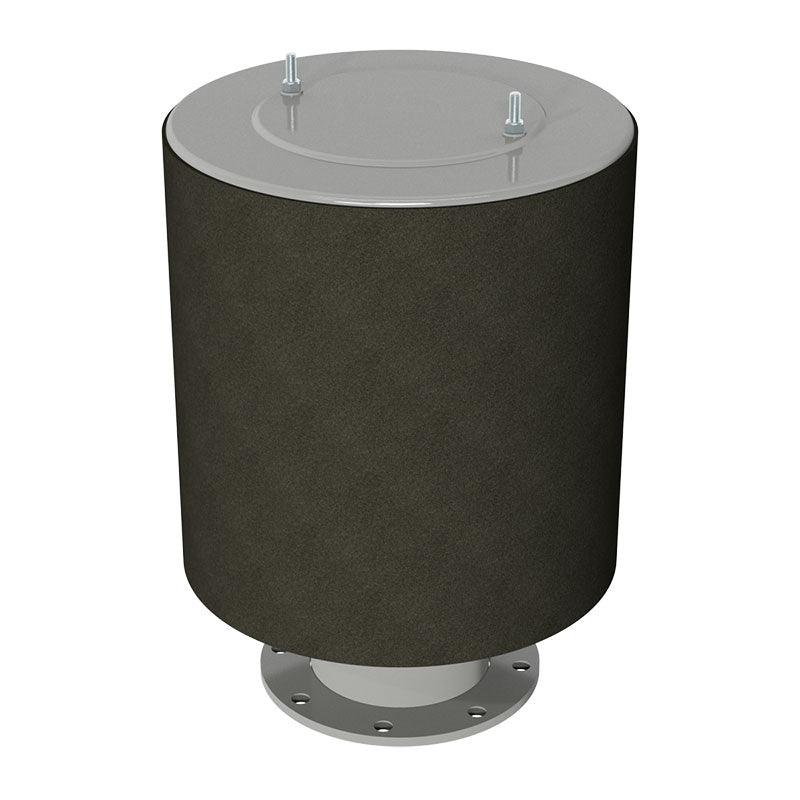

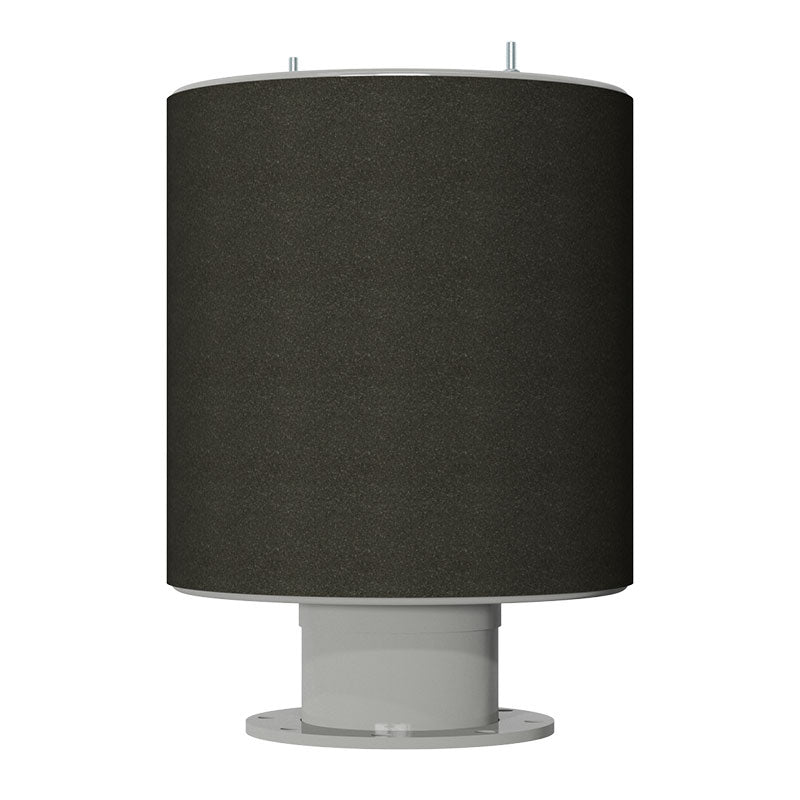

Solberg FT-484P-1000F Open Inlet Filter
The Solberg FT-484P-1000F is an ultra high-capacity open-style inlet filter engineered for industrial compressors, regenerative blowers, vacuum pumps, and pneumatic conveying systems requiring maximum airflow with highly efficient particulate filtration. Built with a high-efficiency polyester filter element and rugged carbon steel construction, this industrial intake filter delivers dependable equipment protection, low restriction airflow, and long-lasting performance in severe-duty industrial environments.
Key Features
- 10" flanged connection for high-capacity industrial air intake systems
- Open element design for maximum airflow and minimal pressure drop
- High-efficiency polyester filter media with 99%+ filtration efficiency at 5 microns
- Heavy-duty carbon steel housing for extended industrial durability
- Corrosion-resistant gray powder coat finish for harsh industrial environments
- Designed for airflow capacities up to 3,300 SCFM
- Low restriction airflow design improves compressor and blower efficiency
- Continuous operating temperature range from -15°F to 220°F (-26°C to 104°C)
- Pressure drop graphs available upon request
- Replaceable filter element for simplified and cost-effective maintenance
Applications
- Industrial air compressors
- Positive displacement blowers
- Regenerative blowers
- Vacuum pumps
- Pneumatic conveying systems
- Wastewater aeration systems
- Industrial machinery air intake filtration
- Bulk material handling systems
- Hydraulic breather applications
- Industrial and severe-duty operating environments
Specifications
- Model: FT-484P-1000F
- Series: FT Series
- Connection Size: 10 Inch Flange
- Filter Media: Polyester Element
- Micron Rating: 5 Micron
- Filtration Efficiency: 99%+
- Maximum Flow Rate: 3,300 SCFM
- Housing Material: Carbon Steel
- Housing Finish: Gray Powder Coat
- Design: Open / Exposed Element
- Overall Height: Approx. 31 Inches
- Outside Diameter: Approx. 19.75 Inches
- Operating Temperature: -15°F to 220°F
- Approximate Weight: 95 lbs
- Replacement Element: 484P® Polyester Element
Benefits
- Provides dependable intake filtration for high-capacity compressors and blowers
- Open element design maximizes airflow while minimizing intake restriction
- Protects equipment from harmful airborne particulate contamination
- Heavy-duty steel construction withstands severe industrial operating conditions
- Supports ultra-high airflow industrial applications with low pressure loss
- Simple maintenance with quick filter element replacement
The Solberg FT Series inlet filters are engineered for industrial applications requiring efficient particulate filtration, low restriction airflow, and dependable equipment protection in compact and heavy-duty operating environments.
