Product Description

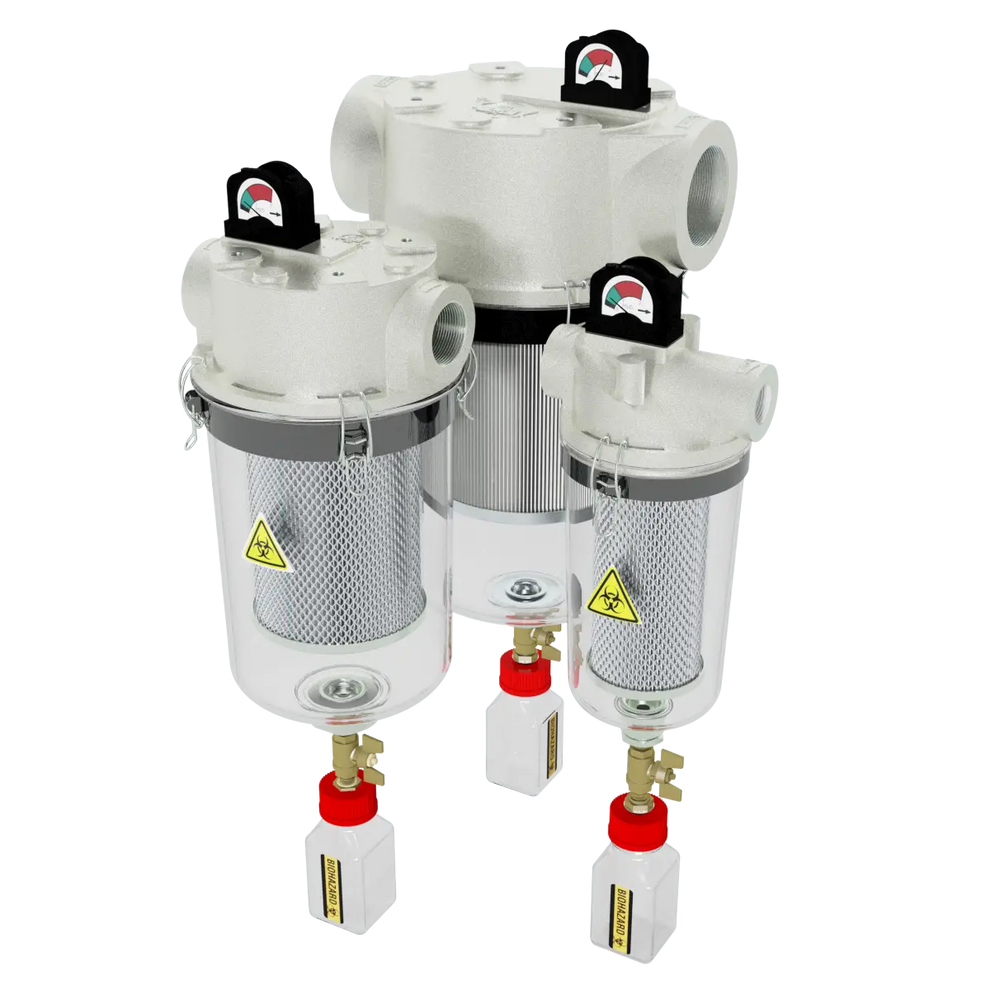

Solberg HV-UL234/2G-300C Medical Vacuum Filter
The Solberg HV-UL234/2G-300C is a high-capacity inline straight-through medical vacuum filter designed for hospital vacuum systems, laboratory environments, and medical gas distribution applications. It delivers ULPA-level filtration performance while maintaining low pressure drop and reliable airflow for continuous vacuum operation in critical healthcare and industrial environments.
This model is built with a corrosion-resistant cast aluminum head, transparent shatter-resistant polycarbonate collection chamber, glass drain flask for safe sterilization, and an integrated pressure drop indicator gauge. It is engineered for safe handling of contaminated air streams and dependable long-term operation in medical-grade vacuum systems.
Key Features
- Inline straight-through medical vacuum filter design
- 3" FPT inlet and outlet connections
- ULPA filtration media rated at 0.1 micron
- 99.995% particulate removal efficiency
- Meets NFPA 99 medical vacuum system requirements
- ISO 29463-1 ISO 45H filtration classification
- Cast aluminum corrosion-resistant head assembly
- Shatter-resistant transparent polycarbonate housing
- Glass drain flask for sterilization and safe disposal
- “Easy Read” pressure drop indicator gauge
- Brass drain valve and fittings for liquid discharge
- Biohazard labeling for medical safety compliance
- High dirt-holding capacity for extended service life
- Low air-to-media ratio for reduced pressure loss
Specifications
- Model: HV-UL234/2G-300C
- Series: HV Medical Vacuum Filter Series
- Connection Size: 3"
- Connection Type: FPT
- Filter Media: ULPA
- Micron Rating: 0.1 micron
- Filtration Efficiency: 99.995%
- ULPA Classification: ISO 45H
- Airflow Capacity (Rarified): 619 CFM
- Free Air Aspirated (FAA): ~207 SCFM
- Operating Pressure: Atmospheric to full vacuum
- Continuous Temperature Range: -15°F to 220°F (-26°C to 104°C)
- Approximate Height: 29"
- Approximate Diameter: 13.5"
- Approximate Weight: ~30 lbs
- Replacement Element: UL234/2G
Applications
- Hospital central vacuum systems
- Medical gas distribution systems
- Laboratory vacuum systems
- Dental vacuum systems
- Biological containment systems
- Cleanroom vacuum applications
- Research and pharmaceutical facilities
- Vacuum pump protection systems
Optional Features
- Available with or without pressure gauge
- Mounting bracket modifications available
- Alternative service accessories kits
The HV-UL234/2G-300C is engineered to provide ULPA-grade protection for sensitive vacuum systems, ensuring safe operation, high filtration efficiency, and reliable performance in critical medical and laboratory environments.
