Product Description

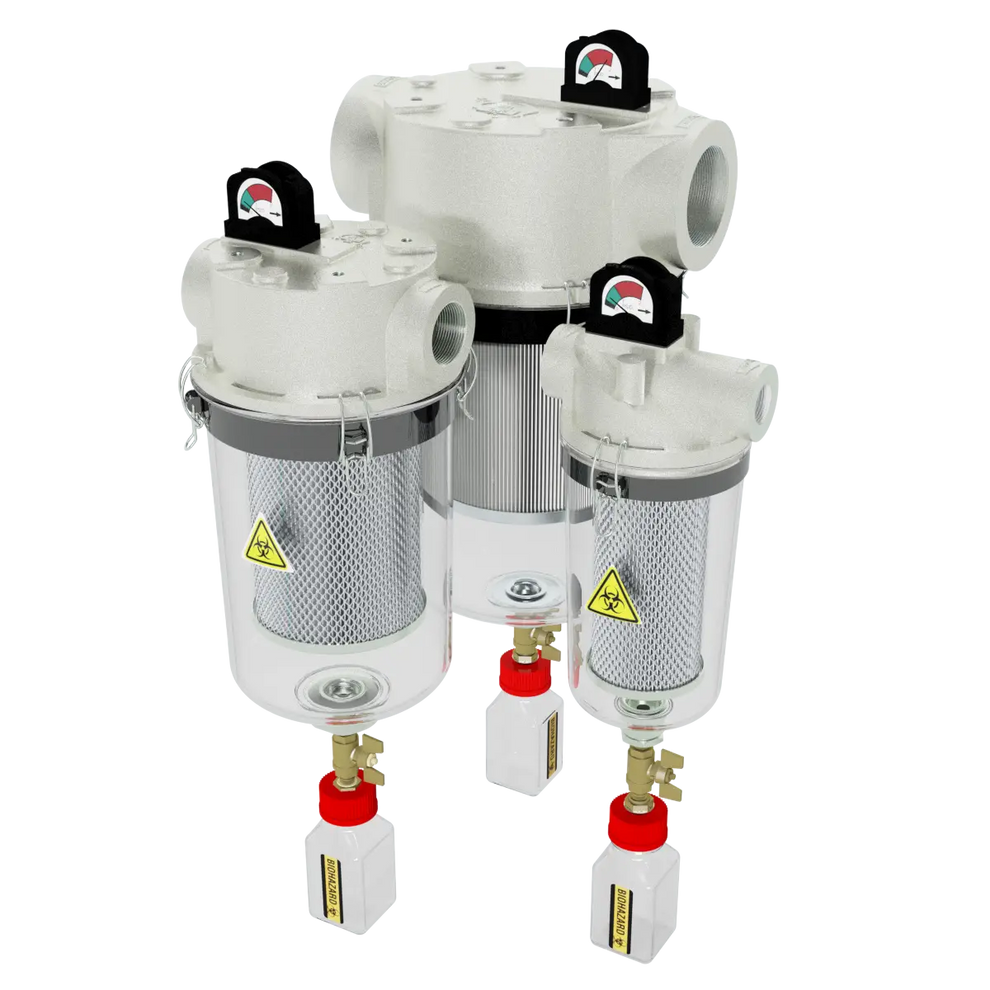

Solberg HV-UL850/1-250C Medical Vacuum Filter
The Solberg HV-UL850/1-250C is a high-efficiency inline straight-through medical vacuum filter designed for hospital vacuum systems, laboratory environments, and medical gas distribution applications. Built to meet strict healthcare and safety standards, this ULPA-rated filter delivers 99.995% filtration efficiency at 0.1 micron while maintaining low pressure drop for stable vacuum pump performance.
This model features a corrosion-resistant cast aluminum head, transparent shatter-resistant polycarbonate collection chamber, reusable glass drain flask, and an integrated “Easy Read” pressure drop indicator gauge for real-time monitoring. It is engineered for safe, reliable, and continuous operation in critical medical environments.
Key Features
- Inline straight-through medical vacuum filter design
- 2.5" FPT inlet and outlet connections
- ULPA filtration media rated at 0.1 micron
- 99.995% particulate removal efficiency
- Meets NFPA 99 requirements for medical vacuum systems
- ISO 29463-1 ISO 45H classified filtration media
- Operates from atmospheric pressure to full vacuum
- Cast aluminum corrosion-resistant head assembly
- Transparent polycarbonate collection chamber
- Reusable glass drain flask for safe contamination handling
- Integrated pressure drop indicator gauge (“Easy Read”)
- Brass drain valve and fittings for liquid removal
- Biohazard labeling for medical compliance
- High dirt holding capacity for longer service intervals
- Low pressure drop for efficient vacuum operation
Specifications
- Model: HV-UL850/1-250C
- Series: HV Medical Vacuum Filter Series
- Connection Size: 2.5"
- Connection Type: FPT
- Filter Media: ULPA
- Micron Rating: 0.1 Micron
- Filtration Efficiency: 99.995%
- ULPA Classification: ISO 45H
- Airflow Rating (Rarified): 383 CFM
- Free Air Aspirated (FAA): 129 SCFM
- Operating Pressure: Atmospheric to Full Vacuum
- Continuous Temperature Range: -15°F to 220°F (-26°C to 104°C)
- Overall Height: 25.5"
- Outside Diameter: 9"
- Approximate Weight: 19 lbs
- Replacement Element: UL850/1
Applications
- Hospital vacuum systems
- Medical gas distribution systems
- Laboratory vacuum systems
- Dental vacuum applications
- Research and pharmaceutical facilities
- Biological containment systems
- Cleanroom vacuum processes
- Vacuum pump protection systems
- Medical suction systems
Optional Features
- Available with or without pressure gauge
- Mounting bracket modifications available
- Additional replacement kits and accessories
The HV-UL850/1-250C medical vacuum filter is engineered to deliver exceptional ULPA-level protection while ensuring safe operation of vacuum systems in critical healthcare and laboratory environments.
