Product Description

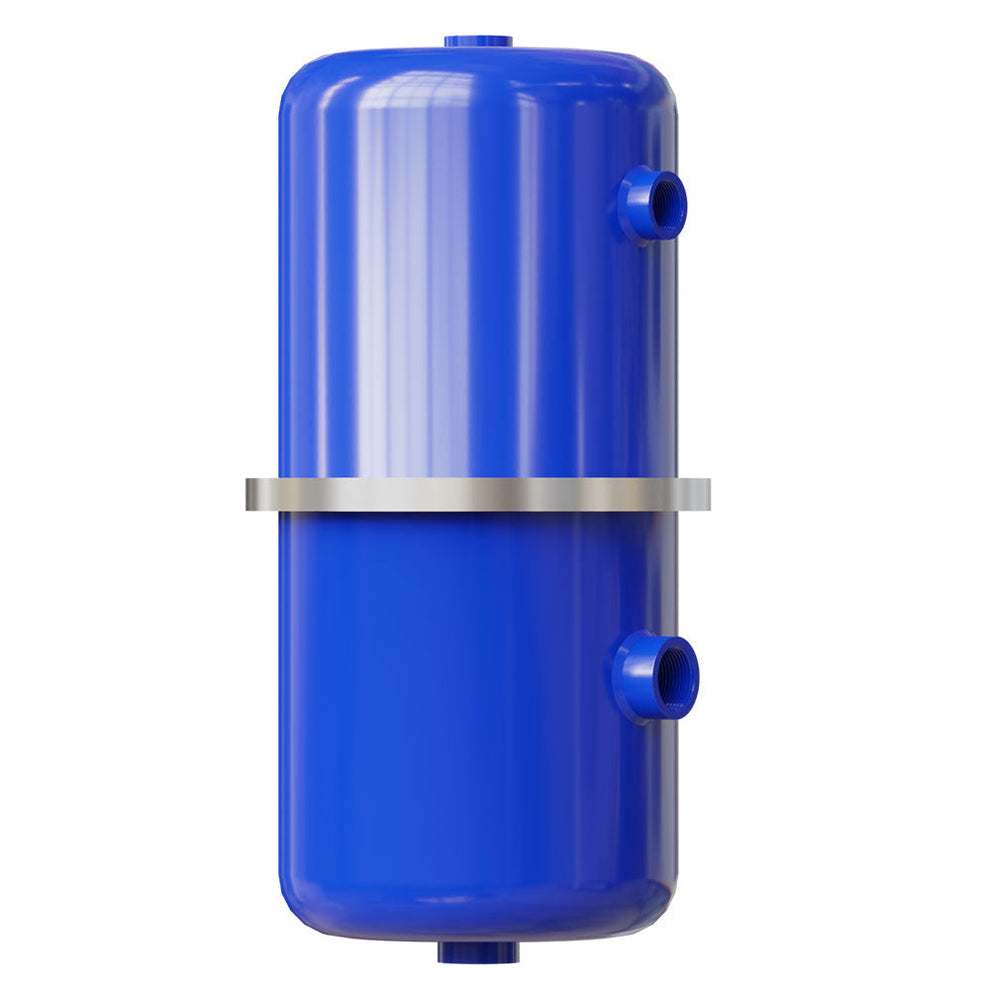

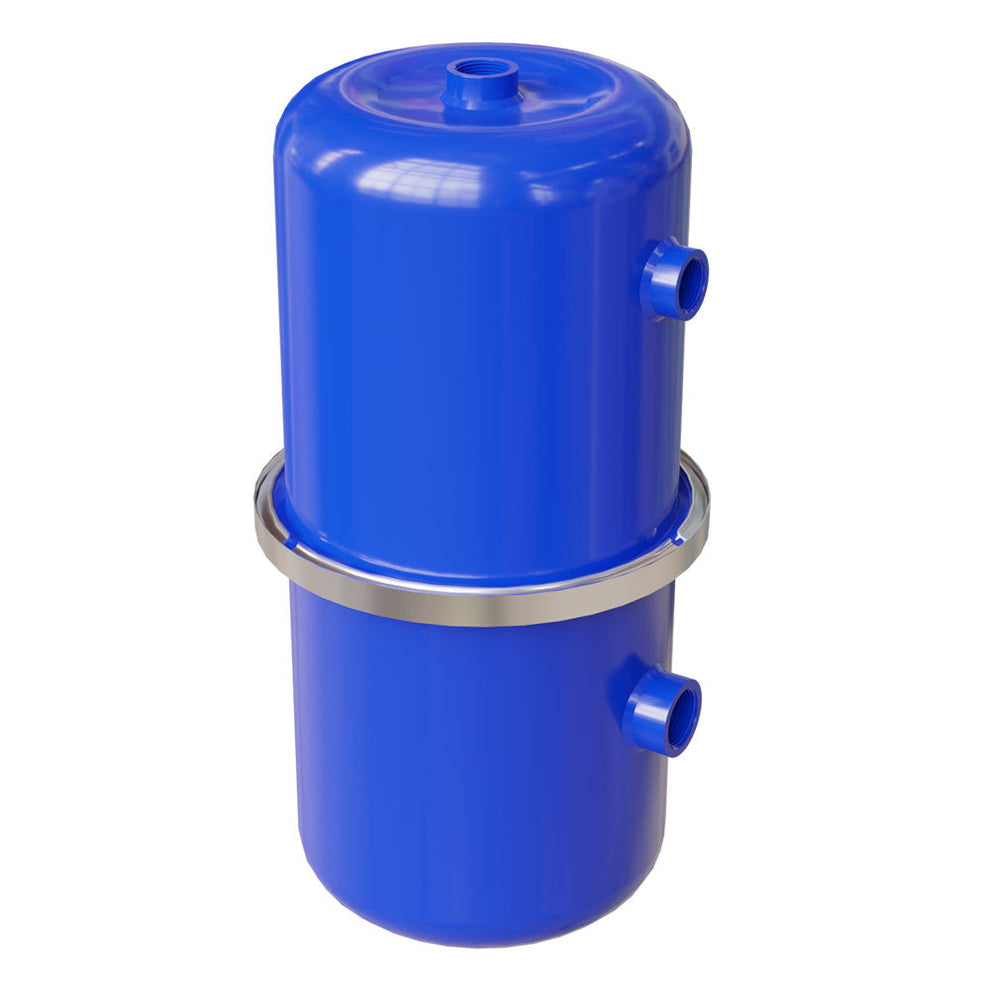

The Solberg LRS-19-075HC is a compact integrated liquid knockout and vacuum filtration system designed to protect vacuum pumps and systems from liquid carryover, vapor, and particulate contamination. It combines liquid separation and inlet filtration in a single unit, making it ideal for demanding industrial vacuum applications.
This LRS Series system features a 5-micron polyester filter element with 99%+ efficiency and an integrated separation chamber that helps remove liquids and aerosols before they reach the pump. The design includes a corrosion-resistant carbon steel housing with a durable coated finish and a transparent viewing section for monitoring liquid levels.
Key Features
- Integrated liquid knockout + vacuum inlet filtration system
- 5-micron polyester filter media
- High-efficiency particulate removal (99%+)
- Integrated baffle and expansion chamber for liquid separation
- Transparent sight section for visual inspection
- Corrosion-resistant powder-coated carbon steel body
- Designed for oil-lubricated and dry vacuum systems
- High liquid/slurry holding capacity
- Helps prevent emulsification and pump damage
Specifications
- Model: LRS-19-075HC
- Connection Size: 3/4 in NPSC
- Function: Liquid separator + inlet vacuum filter (2-in-1 system)
- Filter Media: Polyester
- Micron Rating: 5 Micron
- Filtration Efficiency: 99%+
- Flow Capacity: ~60 SCFM
- Holding Capacity: ~1.5 gallons
- Housing Material: Carbon steel (powder coated)
- Internal Components: Integrated baffle + expansion chamber
- Drain Port: 1 in NPSC (typical configuration)
- Operating Temperature: -15°F to 220°F
Applications
- Vacuum pump protection systems
- Chemical processing systems
- Food processing equipment
- Pharmaceutical vacuum applications
- Pneumatic conveying systems
- Chip and slurry handling systems
- Industrial vacuum filtration systems
- Moisture and solvent separation applications
The Solberg LRS-19-075HC provides advanced dual-stage protection by combining liquid separation and fine filtration in one compact unit, improving vacuum system reliability and extending pump life in demanding environments.
