Product Description

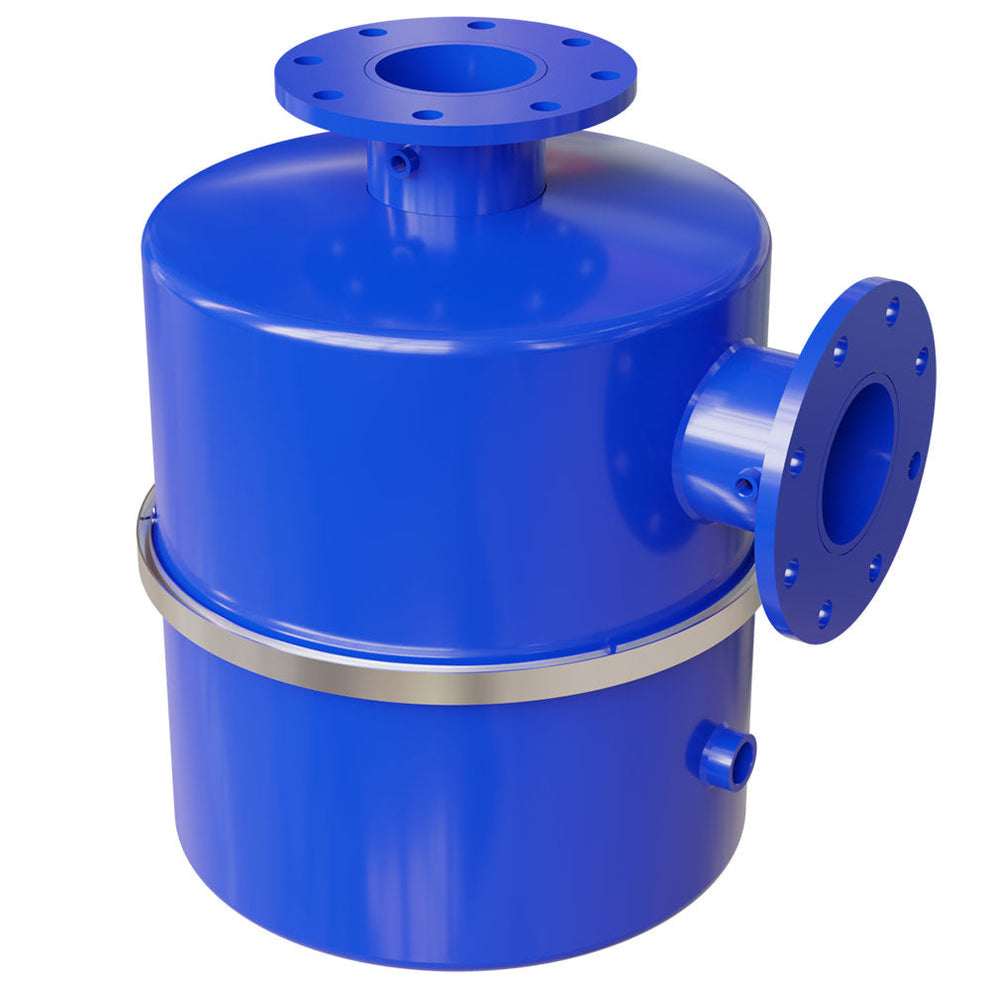

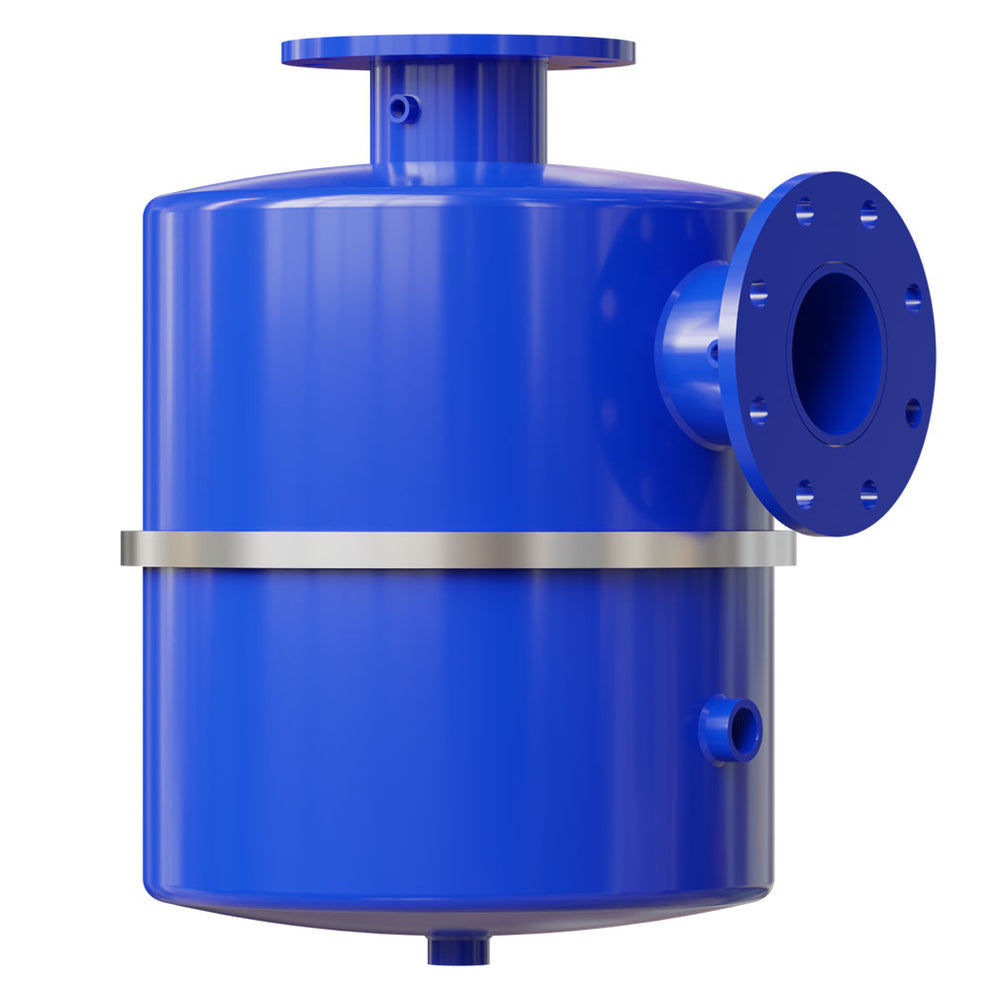

The Solberg LRS-275-400F is a high-capacity integrated liquid knockout and vacuum filtration system designed to protect vacuum pumps and process equipment from liquid carryover, aerosols, vapors, and fine particulate contamination. It combines liquid separation and filtration in a single heavy-duty unit, reducing system footprint while improving reliability and efficiency.
This LRS Series unit features a 5-micron polyester filter element with 99%+ efficiency, along with an integrated expansion chamber and baffle system that effectively removes liquids before they reach the pump. A SpinMeister® pre-separator and multi-stage separation design further enhance performance in demanding industrial environments.
Key Features
- Integrated liquid knockout + vacuum inlet filtration system
- 4" ANSI flange inlet/outlet connections
- 5-micron polyester filter media (99%+ efficiency)
- SpinMeister® pre-separation technology for enhanced liquid removal
- Integrated baffle and expansion chamber design
- High liquid/slurry holding capacity (~4.5 gallons)
- Heavy-duty epoxy-coated carbon steel construction
- 1" sight port for visual inspection
- 1" drain port for easy maintenance
- Designed to prevent emulsification and protect vacuum pumps
Specifications
- Model: LRS-275-400F
- Connection Size: 4 in ANSI Flange
- Function: Integrated liquid separator + inlet vacuum filter
- Filter Media: Polyester
- Micron Rating: 5 Micron
- Filtration Efficiency: 99%+
- Maximum Flow Rate: ~520 SCFM
- Housing Material: Epoxy-coated carbon steel
- Drain Port: 1 in NPSC
- Sight Port: 1 in NPSC
- Holding Capacity: ~4.5 gallons
- Operating Temperature: -15°F to 220°F (continuous)
- Pressure Drop (change element): 15–20 in H?O above initial ?P
- Dimensions: ~39.38 in L × 17.18 in H × 12 in W
Applications
- Chemical processing systems
- Pharmaceutical vacuum systems
- Food processing equipment
- Chip and semiconductor processing
- Industrial vacuum pump protection
- Solvent and moisture separation systems
- Pneumatic conveying systems
- High-flow industrial air handling systems
The Solberg LRS-275-400F delivers advanced multi-stage liquid separation and filtration in one compact system, improving vacuum reliability, reducing maintenance, and extending equipment life in high-demand industrial applications.
