Product Description

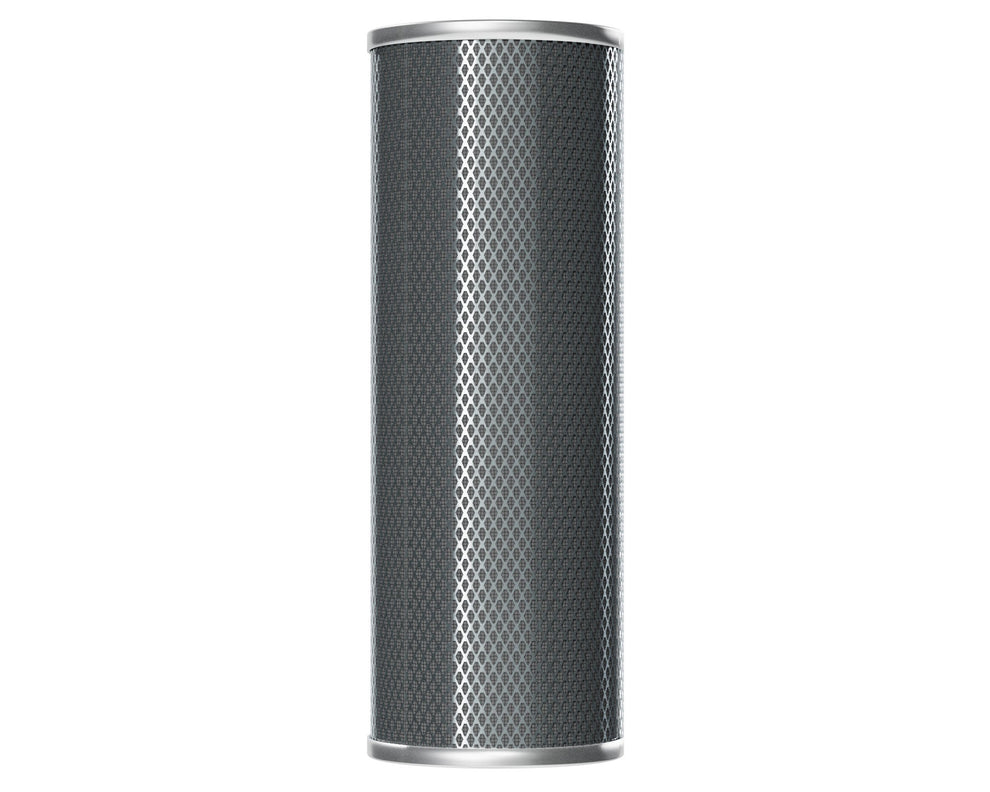

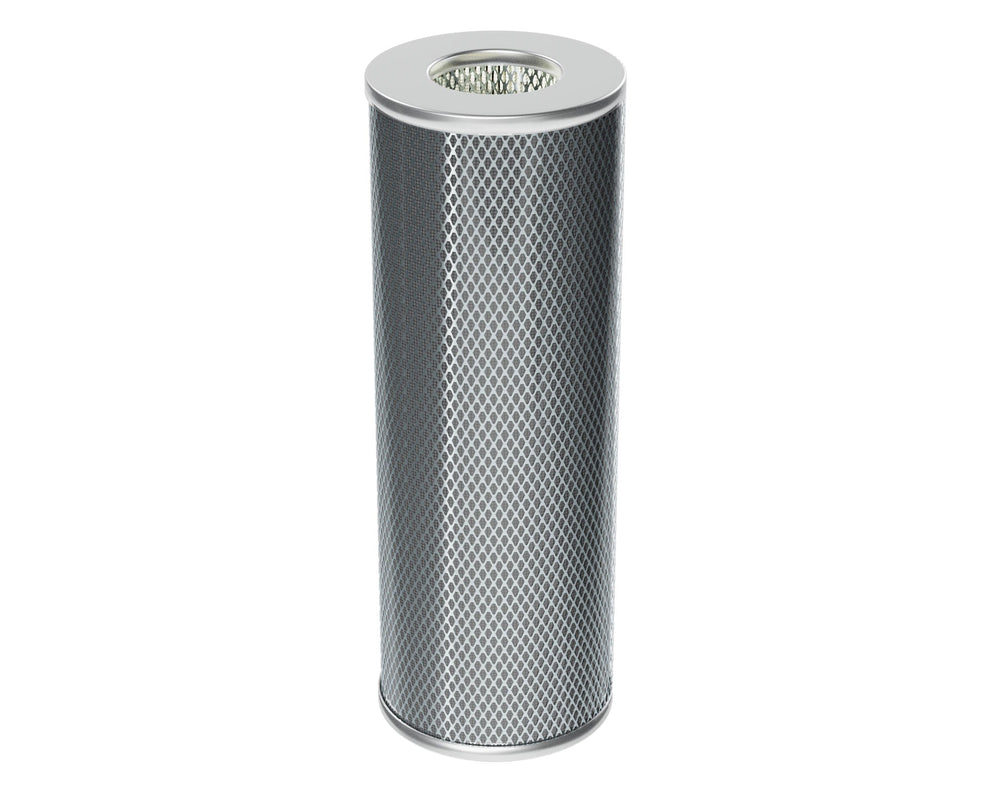

Solberg PSG145 Coalescing Filter Element
The Solberg PSG145 is a high-efficiency coalescing filter element designed for vacuum pump exhaust systems. It is engineered to remove oil mist, aerosols, and fine particulate contamination from discharged air streams in oil-sealed vacuum pump applications.
This element uses advanced microglass coalescing media to achieve extremely high separation efficiency while maintaining low pressure drop. It is widely used in industrial vacuum systems where clean exhaust air and oil recovery are required.
Key Features
- High-efficiency coalescing filter element for oil mist removal
- 0.3 micron filtration rating
- 99.97% efficiency for aerosol and oil fog capture
- Microglass fiber coalescing media construction
- Large surface area pleated design for low pressure drop
- Designed for continuous-duty industrial operation
Specifications
- Model: PSG145
- Brand: Solberg
- Series: PSG Oil Mist Discharge Filter Series
- Filtration Rating: 0.3 micron
- Efficiency: 99.97%
- Flow Capacity: ~175 SCFM
- Media Type: Microglass coalescing media
- Application: Vacuum pump exhaust oil mist separation
Applications
- Oil-sealed vacuum pump exhaust systems
- Industrial oil mist removal systems
- Vacuum coating and freeze drying systems
- Industrial process vacuum applications
- Compressor discharge filtration systems
Benefits
- Reduces oil emissions from exhaust air
- Improves workplace air quality and safety
- Enables oil recovery and reuse
- Reduces environmental contamination
The Solberg PSG145 coalescing filter element delivers reliable 0.3 micron oil mist separation with high efficiency and stable performance in compact vacuum pump exhaust systems.
