Solberg PSG344/2 Replacement Coalescing Filter Element – 0.3 Micron Oil Mist Removal Cartridge (HDL Series, 500 SCFM Class)

Product Description

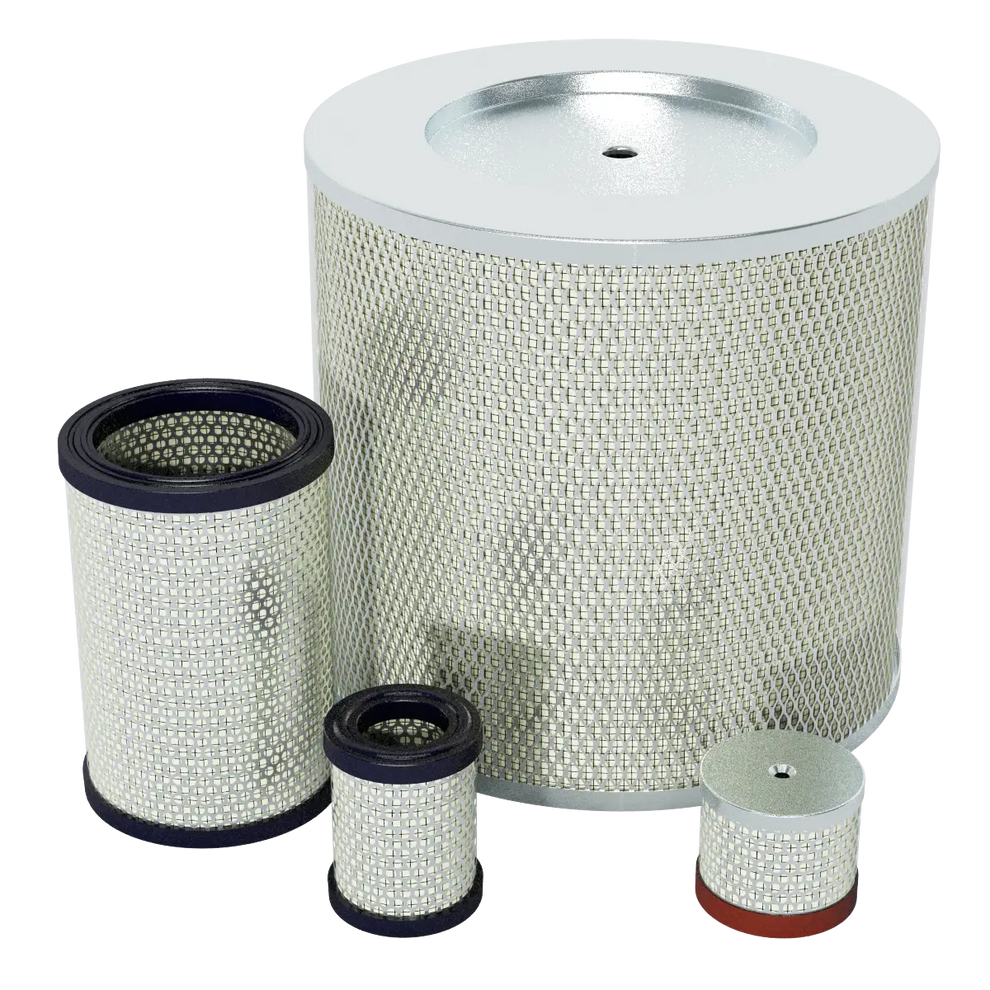

Solberg PSG344/2 Coalescing Filter Element

The Solberg PSG344/2 is a high-efficiency coalescing filter element designed for vacuum pump exhaust systems. It is engineered to remove ultra-fine oil mist, aerosols, and particulate contamination from discharged air streams in oil-sealed vacuum pump applications.

This element is part of the Solberg HDL series and uses advanced microglass and synthetic fiber media to achieve very high separation efficiency while maintaining low pressure drop. It is designed for continuous industrial use where clean exhaust air and oil recovery are required.

Key Features

• High-efficiency coalescing filter element for oil mist removal
• 0.3 micron filtration rating
• 99.97% efficiency for aerosol and oil fog capture
• Microglass + synthetic fiber media construction
• Reinforced steel support on both sides of media
• Designed for low pressure drop and long service life

Specifications

• Model: PSG344/2
• Brand: Solberg
• Series: HDL Oil Mist Discharge Filter Series
• Filtration Rating: 0.3 micron
• Efficiency: 99.97%
• Maximum Flow Rate: ~500 SCFM
• Media Type: Glass fiber and synthetic coalescing media
• Application: Vacuum pump exhaust oil mist separation
• Operating Temperature: -26°C to 104°C

Applications

• Oil-sealed vacuum pump exhaust systems
• Industrial oil mist removal and recovery systems
• Vacuum coating and freeze drying systems
• Heat treatment and industrial vacuum processes
• Compressor and blower discharge filtration

Benefits

• Reduces oil emissions from vacuum exhaust air
• Improves workplace air quality and safety
• Enables oil recovery and reuse
• Reduces environmental impact and maintenance costs

The Solberg PSG344/2 coalescing filter element delivers reliable 0.3 micron oil mist separation with high efficiency and stable performance in demanding vacuum pump applications.
