Solberg PSG374/2 Replacement Coalescing Filter Element – 0.3 Micron Oil Mist Removal Cartridge (HDL Series, ~800 SCFM Class)

Product Description

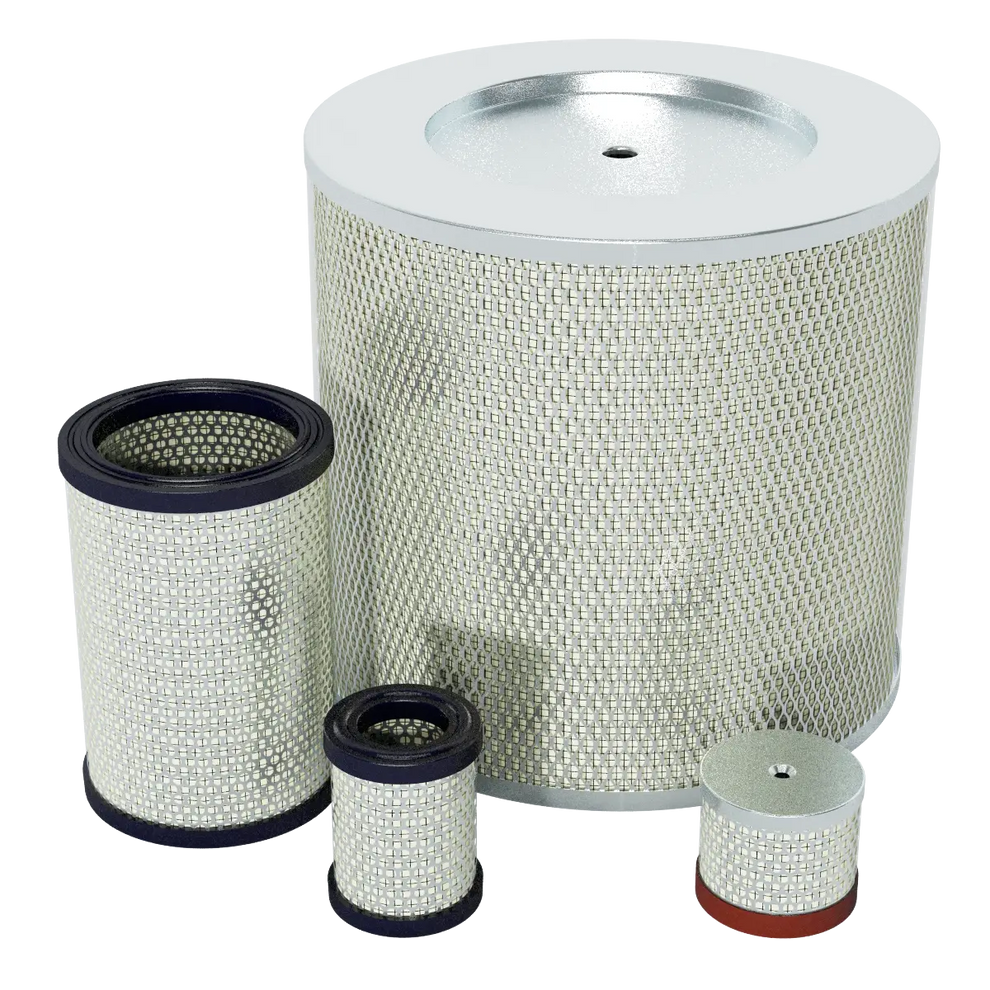

Solberg PSG374/2 Coalescing Filter Element

The Solberg PSG374/2 is a high-efficiency coalescing filter element designed for vacuum pump exhaust systems. It is engineered to remove ultra-fine oil mist, aerosols, and smoke from oil-sealed vacuum pump discharge air streams.

This element is part of the Solberg HDL series and uses advanced microglass and synthetic fiber media to achieve very high separation efficiency (0.3 micron) while maintaining low pressure drop. It is designed for continuous industrial operation in demanding vacuum applications.

Key Features

• Coalescing filter element for vacuum pump exhaust oil mist removal
• 0.3 micron filtration rating
• 99.97% efficiency for aerosol and oil fog capture
• Glass fiber + synthetic media construction
• Reinforced support layers for durability under high airflow
• Designed for low pressure drop and long service life

Specifications

• Model: PSG374/2
• Brand: Solberg
• Series: HDL Oil Mist Discharge Filter Series
• Filtration Rating: 0.3 micron
• Efficiency: 99.97%
• Maximum Flow Rate: ~800 SCFM
• Media Type: Microglass and synthetic coalescing media
• Application: Vacuum pump exhaust oil mist separation

Applications

• Oil-sealed vacuum pump exhaust systems
• Industrial oil mist removal and recovery systems
• Vacuum coating and freeze drying systems
• Industrial process vacuum systems
• Blower and compressor discharge filtration

Benefits

• Reduces oil emissions from exhaust air
• Improves workplace air quality and safety
• Enables oil recovery and reuse
• Reduces environmental contamination and maintenance costs

The Solberg PSG374/2 coalescing filter element delivers high-performance 0.3 micron oil mist separation with strong airflow capacity, making it suitable for mid-to-large industrial vacuum pump exhaust applications.
