Solberg PSG474/2 Replacement Coalescing Filter Element – 0.3 Micron Oil Mist Removal Cartridge (HDL Series, ~1100 SCFM Class)

Product Description

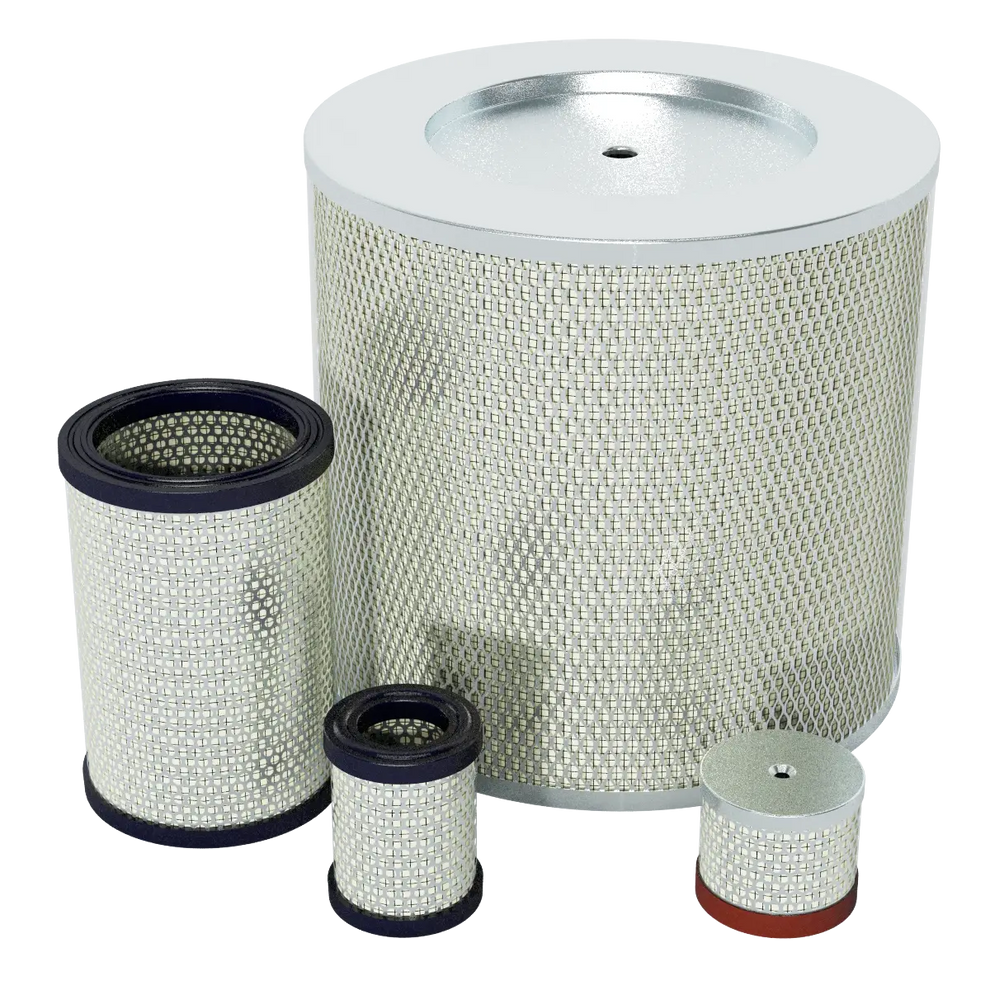

Solberg PSG474/2 Coalescing Filter Element

The Solberg PSG474/2 is a high-efficiency coalescing filter element designed for vacuum pump exhaust systems. It is engineered to remove ultra-fine oil mist, aerosols, and particulate contamination from oil-sealed vacuum pump discharge air streams.

This element is part of Solberg’s HDL oil mist separation series and uses advanced microglass and synthetic fiber media. It delivers very high separation efficiency with low pressure drop, making it suitable for large industrial vacuum and blower applications.

Key Features

• High-efficiency coalescing filter element for oil mist removal
• 0.3 micron filtration rating
• 99.97% efficiency for aerosol and oil fog capture
• Microglass + synthetic fiber media construction
• Reinforced steel support on both sides of media
• Designed for low pressure drop and long service life

Specifications

• Model: PSG474/2
• Brand: Solberg
• Series: HDL Oil Mist Discharge Filter Series
• Filtration Rating: 0.3 micron
• Efficiency: 99.97%
• Maximum Flow Rate: ~1100 SCFM
• Media Type: Glass fiber and synthetic coalescing media
• Application: Vacuum pump exhaust oil mist separation

Applications

• Oil-sealed vacuum pump exhaust systems
• Industrial oil mist removal and recovery systems
• Vacuum coating and freeze drying systems
• Industrial process vacuum systems
• Compressor and blower discharge filtration

Benefits

• Reduces oil emissions from exhaust air
• Improves workplace air quality and safety
• Enables oil recovery and reuse
• Reduces environmental contamination and maintenance costs

The Solberg PSG474/2 coalescing filter element delivers high-performance 0.3 micron oil mist separation with strong airflow capacity and reliable industrial performance in demanding vacuum pump applications.
