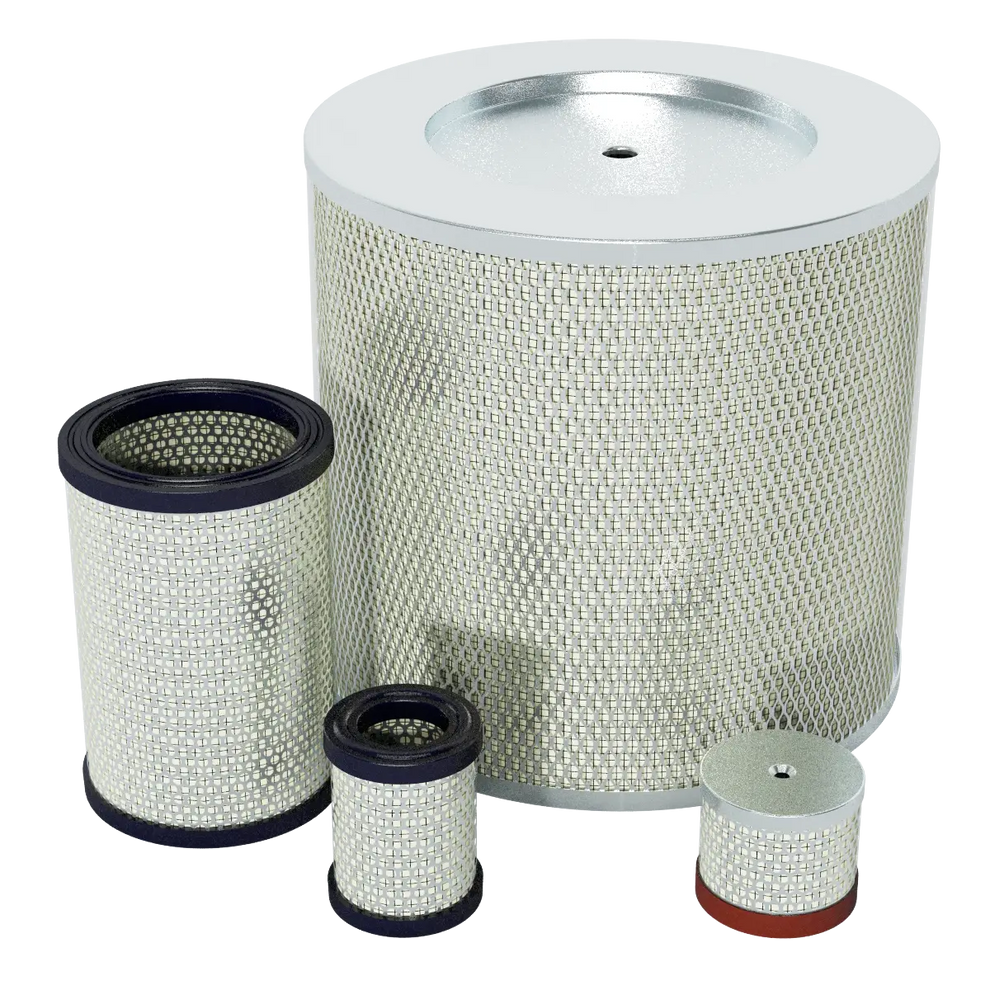

Solberg PSG860/1 Replacement Coalescing Filter Element – 0.3 Micron Oil Mist Removal Cartridge (HDL Series)

Product Description

Solberg PSG860/1 Coalescing Filter Element

The Solberg PSG860/1 is a high-efficiency coalescing filter element designed for vacuum pump exhaust systems and oil mist separation applications. It is engineered to capture and remove ultra-fine oil aerosols, mist, and particulate contamination from exhaust air streams.

This element is part of Solberg’s HDL series and uses advanced microglass and synthetic fiber media. It provides very high separation efficiency while maintaining low pressure drop, making it ideal for oil-sealed vacuum pump discharge systems.

Key Features

• Coalescing filter element for vacuum pump exhaust systems
• 0.3 micron filtration rating
• 99.97% efficiency for oil mist and aerosol removal
• Microglass + synthetic fiber media construction
• Low pressure drop design for stable exhaust flow
• Compatible with Solberg HDL series housings (2"–2.5" ports)

Specifications

• Model: PSG860/1
• Brand: Solberg
• Series: HDL Oil Mist Discharge Filter Series
• Filtration Rating: 0.3 micron
• Efficiency: 99.97%
• Media Type: Microglass and synthetic fiber
• Application: Vacuum pump exhaust oil mist separation
• Maximum Flow Rate: ~200 SCFM

Applications

• Oil-sealed vacuum pump exhaust systems
• Industrial oil mist removal systems
• Vacuum coating and freeze drying systems
• Blower and compressor discharge filtration
• Industrial air/oil separation processes

Benefits

• Reduces oil emissions from vacuum pump exhaust
• Improves workplace air quality and safety
• Enables oil recovery and reuse
• Reduces environmental contamination

The Solberg PSG860/1 coalescing element delivers high-performance 0.3 micron oil mist separation, ensuring clean exhaust air and efficient vacuum pump operation in demanding industrial environments.
