Product Description

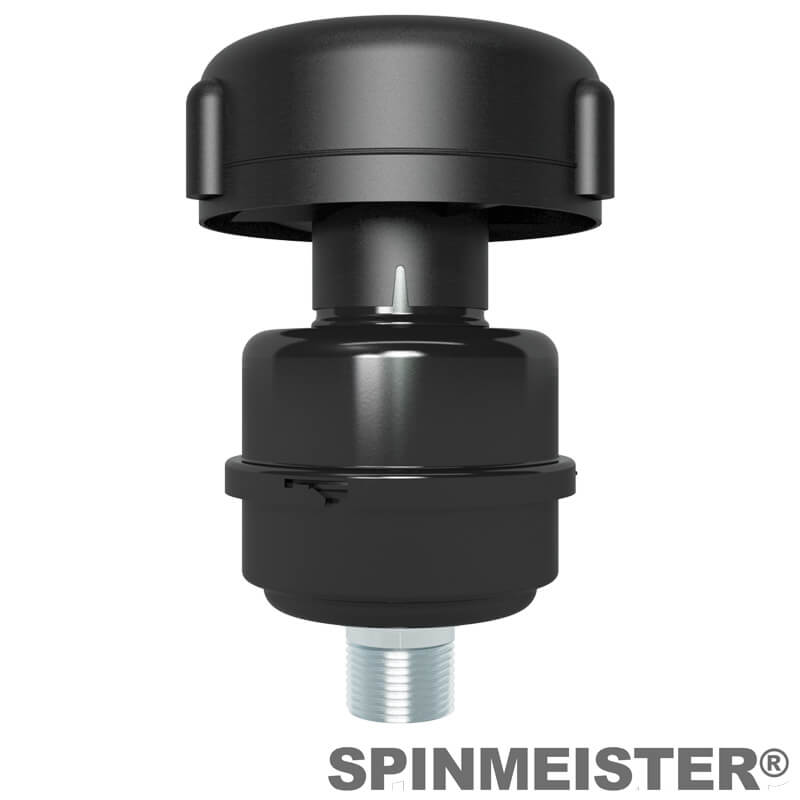

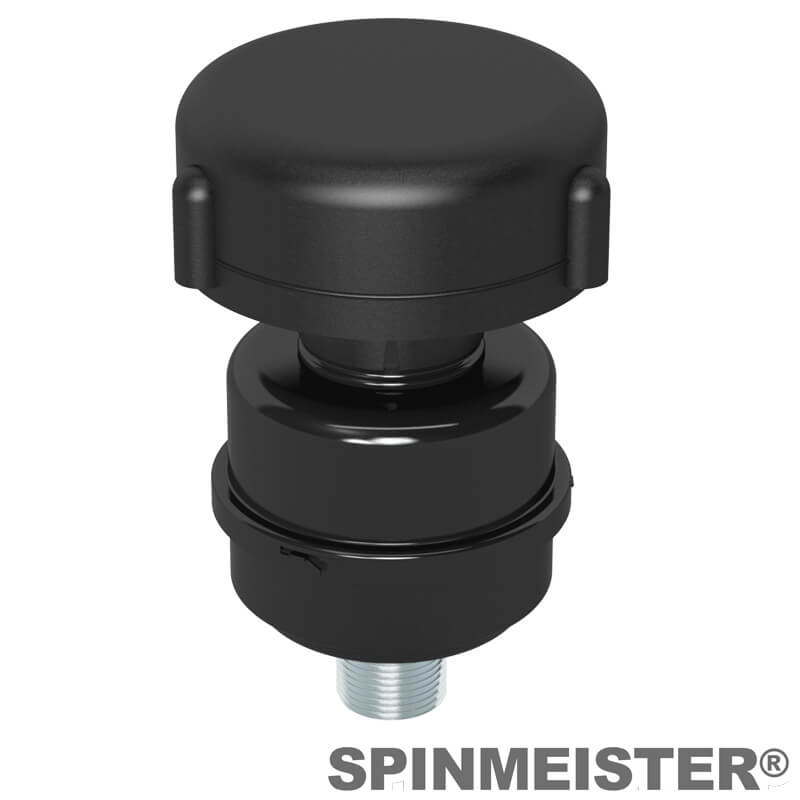

Solberg SM2-10-075 SpinMeister Extreme Duty Inlet Filter
The Solberg SM2-10-075 SpinMeister® Extreme Duty Inlet Filter is designed for high-efficiency air intake filtration in harsh industrial environments with heavy dust and particulate contamination. Featuring a dual-stage filtration system, this compact filter assembly combines a SpinMeister® centrifugal pre-cleaner with a high-performance paper filter element to deliver superior equipment protection and extended filter service life.
The integrated SpinMeister® pre-cleaner removes larger airborne contaminants before they reach the primary filter media, reducing maintenance frequency and helping maintain optimal airflow for vacuum pumps, compressors, blowers, and other industrial systems.
Key Features
- Dual-stage SpinMeister® pre-cleaner filtration system
- High-efficiency paper filter media rated to 2 micron
- 3/4" MNPT threaded connection
- Assembly airflow rating up to 59 m³/h (35 SCFM)
- 85% pre-cleaner efficiency at 15 microns
- Corrosion-resistant gray powder-coated carbon steel housing
- Durable molded fiber-filled composite SpinMeister® assembly
- Compact seamless housing construction
- Continuous operating temperature from -15°F to 220°F
- Designed for extreme-duty industrial applications
Applications
- Vacuum pumps and vacuum systems
- Regenerative blowers
- Piston compressors
- Screw compressors
- Construction and contractor equipment
- Vacuum coating systems
- Industrial air intake filtration
Technical Specifications
- Model: SM2-10-075
- Series: SM Series SpinMeister®
- Connection Size: 3/4" MNPT
- Filter Media: Paper
- Micron Rating: 2 Micron
- Filtration Efficiency: 99%+ @ 2 Micron
- Pre-cleaner Efficiency: 85% @ 15 Micron
- Assembly Airflow Rating: 59 m³/h (35 SCFM)
- Element Airflow Rating: 59 m³/h
- Dimensions: 217 mm x 32 mm x 129 mm
- Approximate Weight: 0.9 kg
- Operating Temperature Range: -15°F to 220°F
- Replacement Element: 10™ Paper Element
The Solberg SM2-10-075 provides dependable filtration performance in severe operating conditions, helping protect critical industrial equipment from airborne contaminants while minimizing downtime and maintenance costs.
