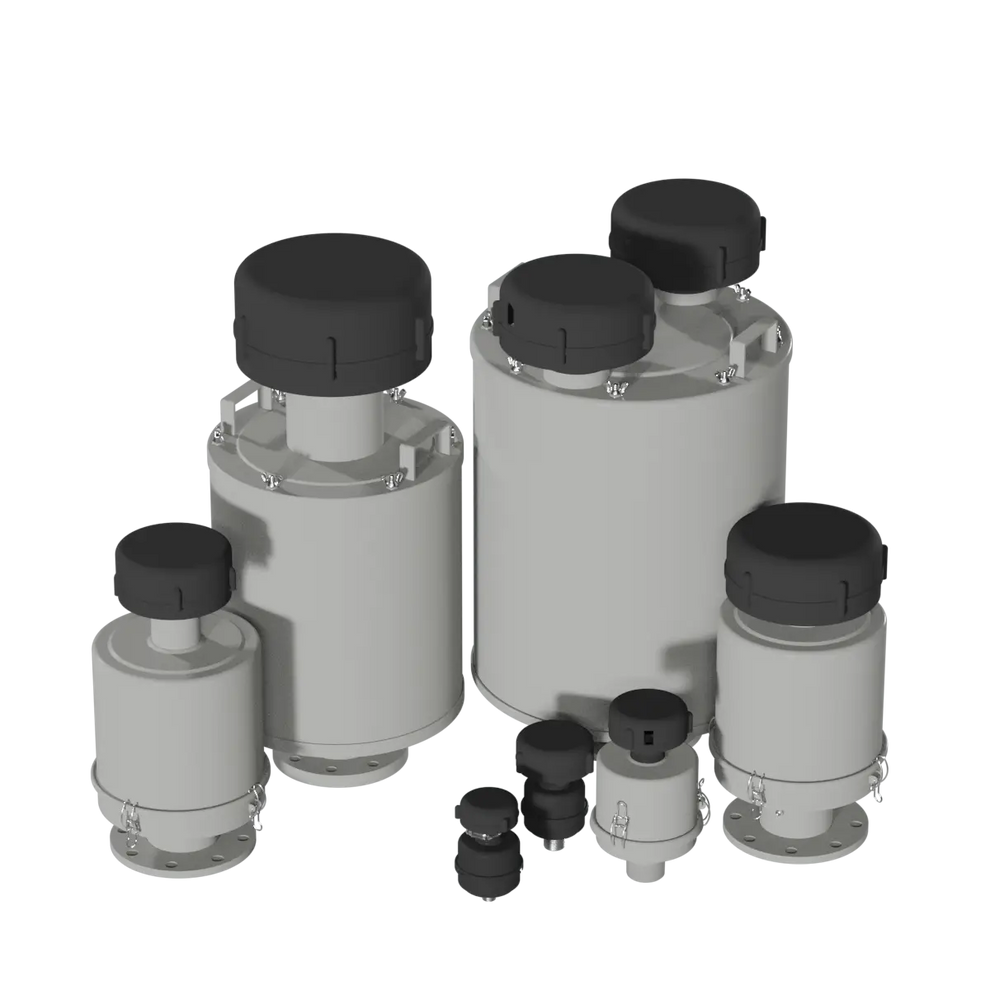

Solberg SM4(2)-376P-500F SpinMeister Extreme Duty Inlet Filter
The Solberg SM4(2)-376P-500F SpinMeister® Extreme Duty Inlet Filter is designed for high-volume industrial air intake filtration in severe operating environments with heavy dust and airborne particulate contamination. Featuring a dual-stage filtration system with dual paper filter elements and a SpinMeister® centrifugal pre-cleaner, this heavy-duty inlet filter provides superior protection for vacuum pumps, compressors, blowers, and industrial air systems.
The integrated SpinMeister® pre-cleaner uses centrifugal separation technology to remove larger airborne contaminants before they reach the primary filter media, helping extend filter service life, reduce maintenance requirements, and maintain consistent airflow performance in demanding industrial applications.
Key Features
- Dual-stage SpinMeister® centrifugal pre-cleaner filtration system
- Dual high-efficiency paper filter elements rated to 2 micron
- 5" flange connection
- Heavy-duty high-capacity industrial filtration design
- 99%+ filtration efficiency at 2 microns
- 85% pre-cleaner efficiency at 15 microns
- Corrosion-resistant gray powder-coated carbon steel housing
- Durable molded fiber-filled composite SpinMeister® assembly
- Heavy-duty seamless housing construction
- Continuous operating temperature from -15°F to 220°F
- Designed for extreme-duty and high-volume industrial applications
Applications
- Vacuum pumps and central vacuum systems
- Industrial regenerative blowers
- Piston and screw compressors
- Bulk material handling systems
- Dust collection and air intake systems
- Heavy manufacturing environments
- Vacuum coating systems
Technical Specifications
- Model: SM4(2)-376P-500F
- Series: SM Series SpinMeister®
- Connection Type: 5" Flange
- Filter Media: Paper
- Filter Configuration: Dual 376P™ Elements
- Micron Rating: 2 Micron
- Filtration Efficiency: 99%+ @ 2 Micron
- Pre-cleaner Efficiency: 85% @ 15 Micron
- Housing Material: Powder-Coated Carbon Steel
- Replacement Element: 376P™ Paper Element
- Approximate Weight: 125 lbs
- Operating Temperature Range: -15°F to 220°F
The Solberg SM4(2)-376P-500F delivers dependable high-capacity inlet filtration performance for industrial systems operating in harsh and dusty environments, helping protect critical equipment while minimizing downtime and maintenance costs.
