Product Description

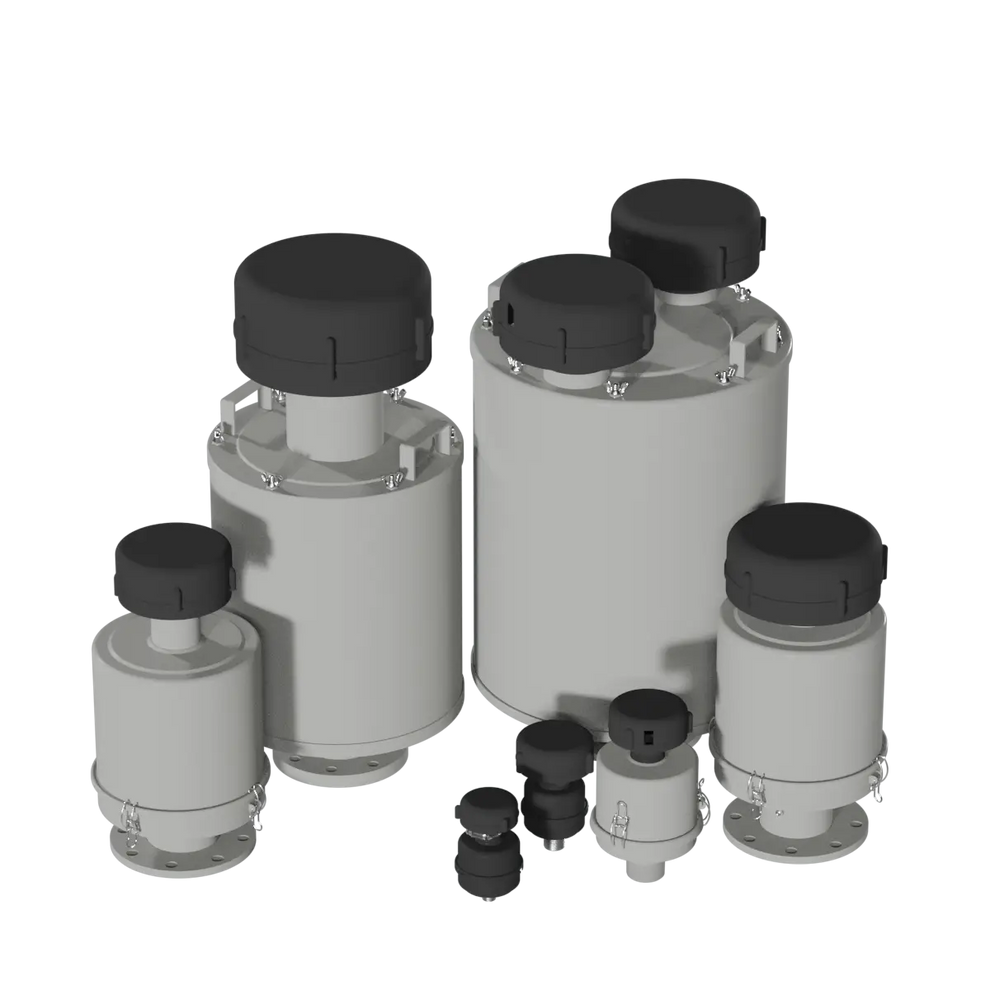

Solberg SM6-274P-400F SpinMeister Extreme Duty Inlet Filter
The Solberg SM6-274P-400F SpinMeister® Extreme Duty Inlet Filter is engineered for high-volume intake filtration in severe industrial environments with elevated dust and airborne particulate contamination. Featuring a dual-stage filtration system, this heavy-duty inlet filter combines a SpinMeister® centrifugal pre-cleaner with a high-efficiency paper filter element to provide superior protection for vacuum pumps, compressors, blowers, and industrial air systems.
The integrated SpinMeister® pre-cleaner uses centrifugal separation technology to remove larger contaminants before they reach the primary filter media, helping extend filter service life, reduce maintenance requirements, and maintain consistent airflow performance in demanding industrial applications.
Key Features
- Dual-stage SpinMeister® centrifugal pre-cleaner filtration system
- High-efficiency paper filter media rated to 2 micron
- 4" flange connection
- High airflow capacity up to 600 SCFM
- 99%+ filtration efficiency at 2 microns
- 85% pre-cleaner efficiency at 15 microns
- Corrosion-resistant gray powder-coated carbon steel housing
- Durable molded fiber-filled composite SpinMeister® assembly
- Heavy-duty seamless housing construction
- Continuous operating temperature from -15°F to 220°F
- Designed for extreme-duty and high-volume industrial applications
Applications
- Vacuum pumps and central vacuum systems
- Regenerative blowers
- Industrial compressors
- Bulk material handling systems
- Dust collection and air intake systems
- Vacuum coating systems
- Heavy manufacturing environments
Technical Specifications
- Model: SM6-274P-400F
- Series: SM Series SpinMeister®
- Connection Type: 4" Flange
- Filter Media: Paper
- Micron Rating: 2 Micron
- Filtration Efficiency: 99%+ @ 2 Micron
- Pre-cleaner Efficiency: 85% @ 15 Micron
- Maximum Flow Rating: 600 SCFM
- Housing Material: Powder-Coated Carbon Steel
- Replacement Element: 274P™ Paper Element
- Operating Temperature Range: -15°F to 220°F
The Solberg SM6-274P-400F delivers dependable high-capacity inlet filtration performance for industrial systems operating in harsh and dusty environments, helping protect critical equipment while minimizing downtime and maintenance costs.
