Product Description

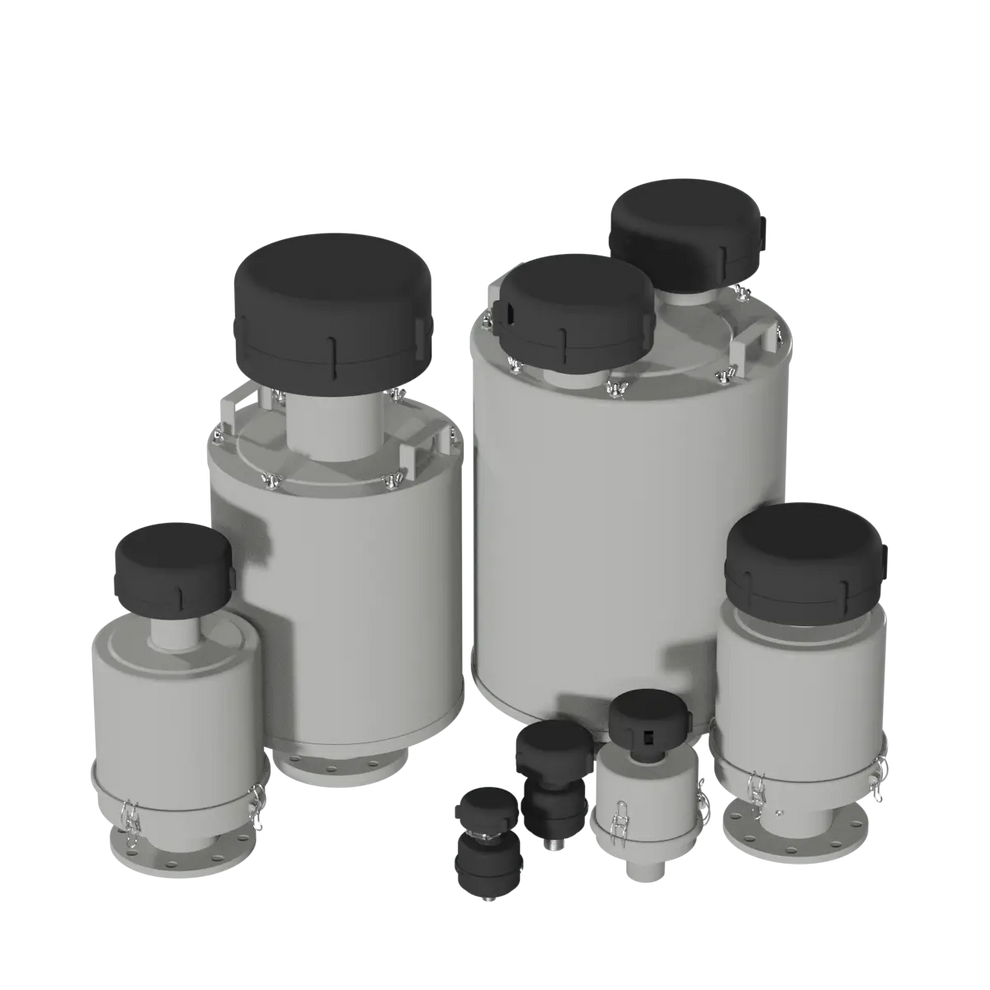

Solberg SM6(3)-484P-1200F SpinMeister Extreme Duty Inlet Filter
The Solberg SM6(3)-484P-1200F SpinMeister® Extreme Duty Inlet Filter is engineered for ultra high-volume industrial air intake filtration in severe operating environments with heavy dust and airborne particulate contamination. Featuring a dual-stage filtration system with triple high-efficiency paper filter elements and a SpinMeister® centrifugal pre-cleaner, this heavy-duty inlet filter provides superior protection for vacuum pumps, compressors, blowers, and centralized air systems.
The integrated SpinMeister® pre-cleaner uses centrifugal separation technology to remove larger airborne contaminants before they reach the primary filter media, helping extend filter service life, reduce maintenance requirements, and maintain consistent airflow performance in demanding industrial applications.
Key Features
- Dual-stage SpinMeister® centrifugal pre-cleaner filtration system
- Triple high-efficiency paper filter elements rated to 2 micron
- 12" ANSI flange connection
- Maximum airflow capacity up to 2,700 SCFM
- 99%+ filtration efficiency at 2 microns
- 85% pre-cleaner efficiency at 15 microns
- Corrosion-resistant gray powder-coated carbon steel housing
- Durable molded fiber-filled composite SpinMeister® assembly
- Heavy-duty industrial seamless housing construction
- Continuous operating temperature from -15°F to 220°F
- Designed for extreme-duty and high-airflow industrial applications
Applications
- Central vacuum systems
- Industrial regenerative blowers
- Piston and screw compressors
- Bulk material conveying systems
- Dust collection and industrial air intake systems
- Vacuum coating systems
- Heavy manufacturing environments
- Power plants and centralized air intakes
Technical Specifications
- Model: SM6(3)-484P-1200F
- Series: SM Series SpinMeister®
- Connection Type: 12" ANSI Flange
- Filter Media: Paper
- Filter Configuration: Triple 484P™ Elements
- Micron Rating: 2 Micron
- Filtration Efficiency: 99%+ @ 2 Micron
- Pre-cleaner Efficiency: 85% @ 15 Micron
- Maximum Flow Rating: 2,700 SCFM
- Outside Diameter: 28-5/16"
- Overall Height: 42-1/8"
- Housing Material: Powder-Coated Carbon Steel
- Replacement Element: 484P™ Paper Element
- Approximate Weight: 160 lbs
- Operating Temperature Range: -15°F to 220°F
The Solberg SM6(3)-484P-1200F delivers dependable ultra high-capacity inlet filtration performance for industrial systems operating in harsh and dusty environments, helping protect critical equipment while minimizing downtime and maintenance costs.
