Product Description

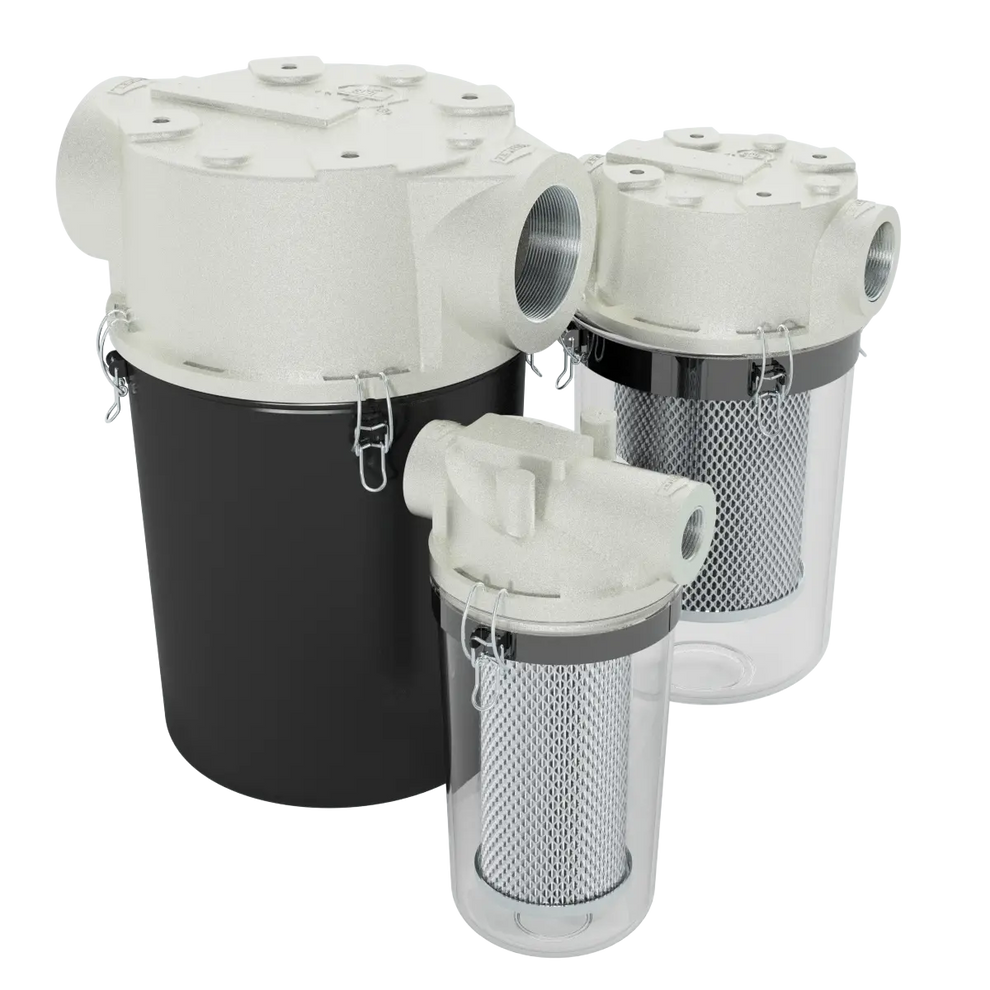

The Solberg ST-235P-300C is a heavy-duty inline T-style inlet vacuum filter designed to protect vacuum pumps and industrial vacuum systems from harmful airborne contaminants and particulate matter. Engineered for medium vacuum service applications, this high-capacity filter combines durable construction, excellent airflow performance, and simplified maintenance.
This ST Series filter features a 5-micron polyester filter element with 99% filtration efficiency, ensuring reliable protection for sensitive vacuum equipment. The shatter-resistant transparent polycarbonate bucket allows easy visual inspection, while the corrosion-resistant cast aluminum top with integrated baffle design enhances durability and filtration efficiency.
Key Features
- Inline T-style inlet vacuum filter configuration
- 5-micron polyester filter media
- 99% particulate removal efficiency
- Shatter-resistant transparent polycarbonate bucket
- Corrosion-resistant cast aluminum top with integrated baffle
- Compact design for installations with limited service space
- Inlet-above-element design extends filter life
- Easy visual inspection and simplified maintenance
- Low pressure drop for efficient airflow performance
Specifications
- Model: ST-235P-300C
- Connection Size: 3 in
- Connection Type: FNPT
- Filter Media: Polyester
- Micron Rating: 5 Micron
- Filtration Efficiency: 99%
- Maximum Air Flow: 300 CFM
- Vacuum Rating: Medium Vacuum Service
- Housing Material: Carbon Steel
- Head Material: Cast Aluminum
- Bucket Material: Polycarbonate
- Outside Diameter: 13.5 in
- Overall Height: 18.63 in
- Operating Temperature Range: -15°F to 220°F
- Recommended Element Change Differential: 15–20" H?O (37–50 mbar)
- Replacement Element: 235P™
Applications
- Vacuum pump systems
- Pneumatic conveying systems
- Vacuum packaging equipment
- Central vacuum systems
- Woodworking operations
- Paper processing facilities
- Cement and ash handling
- Glass and ceramic vacuum applications
- Factory automation systems
- Wastewater aeration systems
- Remote compressor installations
- Industrial intake suction filtration
The Solberg ST-235P-300C vacuum filter delivers dependable industrial filtration performance with high airflow capacity, rugged construction, and efficient contaminant removal for demanding vacuum and intake applications.
