Product Description

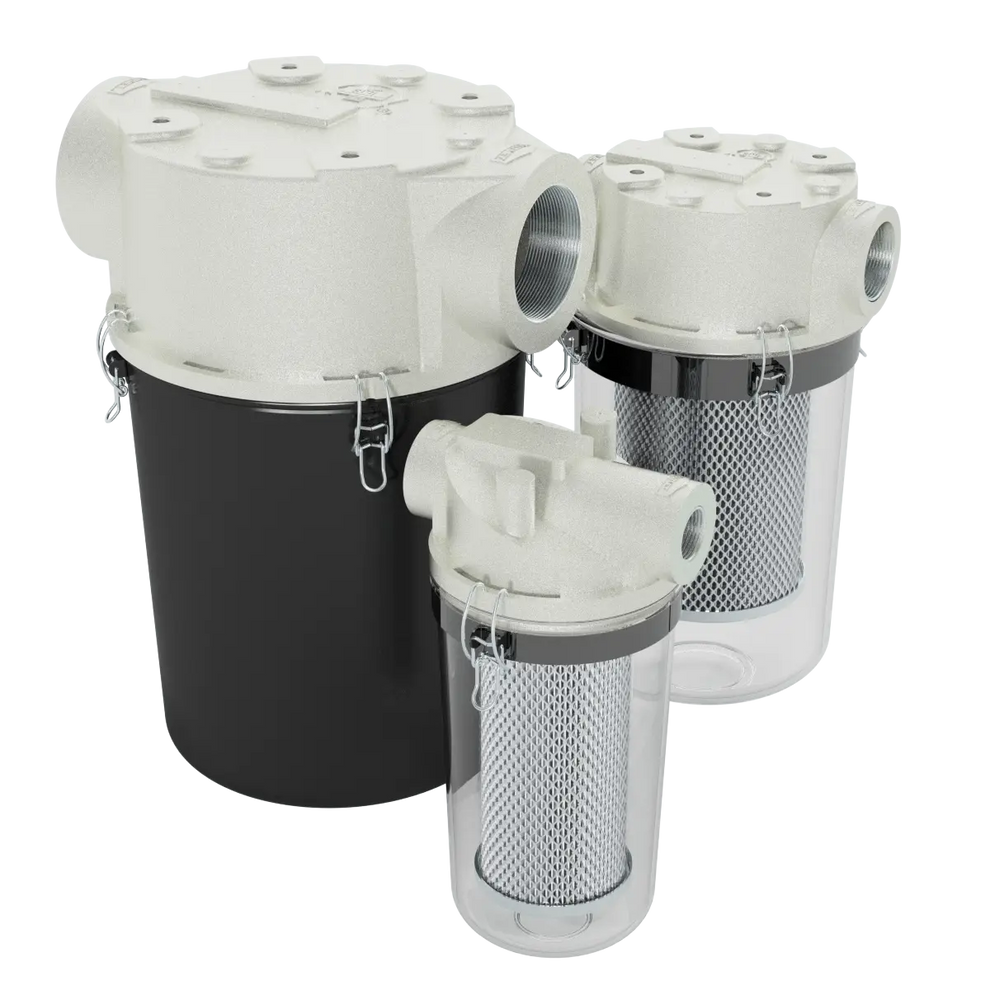

The Solberg ST-896-100C is a compact inline T-style vacuum inlet filter designed to protect vacuum pumps, compressors, and industrial air systems from fine particulate contamination. It is widely used in low-to-medium flow vacuum applications where high-efficiency filtration and compact installation are required.
This ST Series filter features a 2-micron paper filter element with 99%+ efficiency, ensuring excellent removal of fine dust and particulate matter. The transparent polycarbonate bowl allows easy visual inspection, while the cast aluminum head and internal baffle design improve airflow stability and extend filter life.
Key Features
- Inline T-style vacuum inlet filter design
- 1" NPSC connection size
- 2-micron paper filter element for fine filtration
- 99%+ particulate removal efficiency
- Transparent polycarbonate see-through bowl
- Cast aluminum head with integrated baffle system
- Compact design for space-constrained installations
- Easy maintenance and quick element replacement
- Designed for low-to-medium flow vacuum systems
Specifications
- Model: ST-896-100C
- Connection Size: 1 in NPSC
- Filter Media: Paper
- Micron Rating: 2 Micron
- Filtration Efficiency: 99%+
- Flow Capacity: ~40 SCFM
- Housing Material: Cast aluminum head
- Bowl Material: Polycarbonate (transparent)
- Replacement Element: 896 series cartridge
- Operating Temperature: -15°F to 220°F
- Vacuum Service: Medium vacuum applications
- Weight: ~11–12 lb
Applications
- Vacuum pump inlet protection
- Cement and ash handling systems
- Woodworking dust collection
- Pneumatic conveying systems
- Paper processing industries
- Central vacuum systems
- Factory automation equipment
- General industrial air filtration systems
The Solberg ST-896-100C delivers reliable fine particulate filtration in compact systems, improving equipment protection, reducing maintenance requirements, and extending vacuum pump life in industrial environments.
