Product Description
The Solberg STS-200C is a heavy-duty inline straight-through vacuum liquid separator designed to protect vacuum pumps and systems from liquid carryover, moisture, and entrained debris. It is engineered for medium-duty industrial vacuum applications where reliable liquid knock-out and equipment protection are critical.

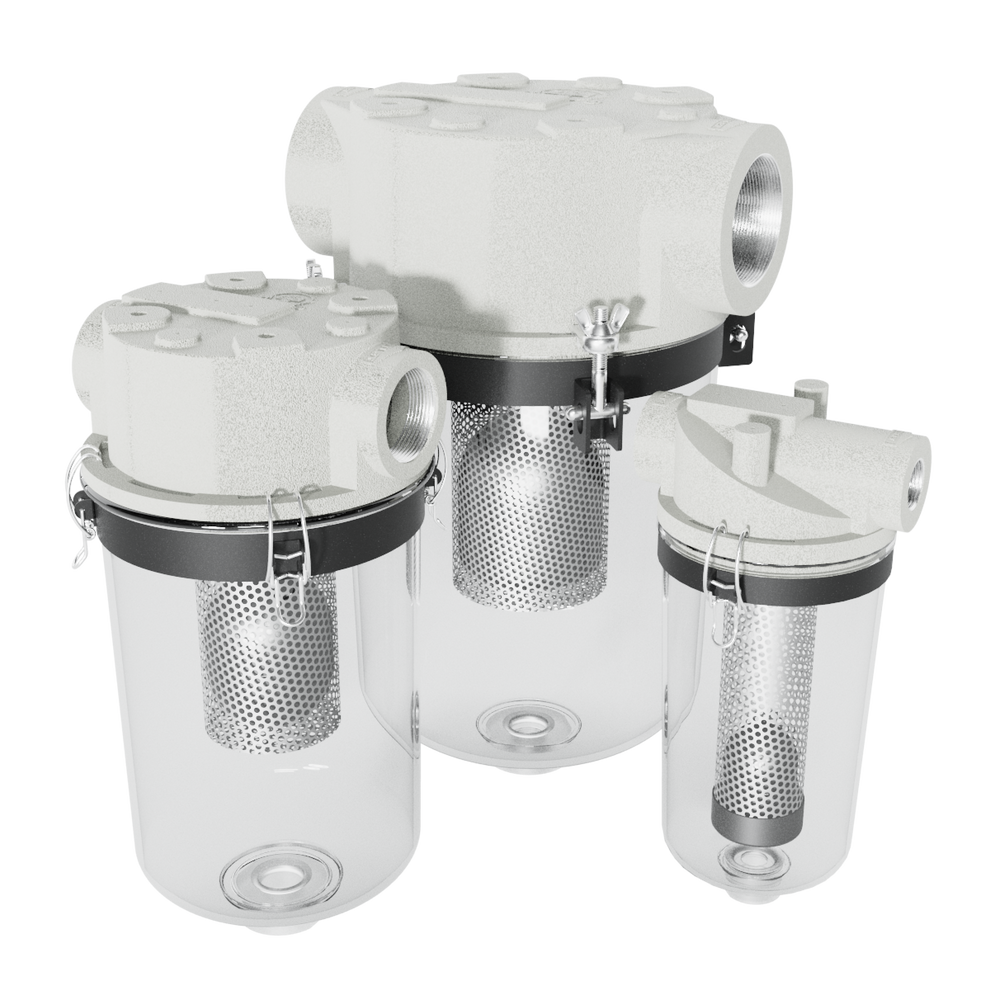

This STS Series separator features a high-impact transparent polycarbonate bowl for easy visual monitoring and a stainless steel float shut-off mechanism that prevents liquid overflow into downstream equipment. An internal baffle design enhances separation efficiency, ensuring cleaner airflow and improved vacuum system performance.
Key Features
- Inline straight-through vacuum liquid separator design
- 2" NPSC inlet/outlet connection
- Transparent polycarbonate bowl for visual inspection
- Stainless steel float shut-off for overflow protection
- Integrated internal baffle system for improved separation efficiency
- Corrosion-resistant cast aluminum head
- Compact design suitable for tight installations
- Easy maintenance and quick inspection access
- Designed for vacuum pump protection and extended system life
Specifications
- Model: STS-200C
- Connection Size: 2 in NPSC
- Flow Capacity: ~105–175 CFM
- Type: Inline Straight-Through Liquid Separator
- Housing Material: Cast Aluminum
- Bowl Material: Polycarbonate (see-through)
- Float Mechanism: Stainless steel emergency shutoff
- Drain Port: 1 in
- Operating Temperature: -15°F to 220°F
- Outside Diameter: ~9 in
- Overall Height: ~16.75 in
- Weight: ~12 lb
Applications
- Vacuum pump protection systems
- Soil vapor extraction systems
- Food processing equipment
- Industrial vacuum lines
- Moisture and condensate removal systems
- Pneumatic conveying systems
- Chip and dust processing systems
- General industrial air-liquid separation
The Solberg STS-200C delivers reliable liquid separation performance with a rugged construction and high flow capacity, helping protect vacuum systems from liquid damage and improving overall operational efficiency.
