Product Description

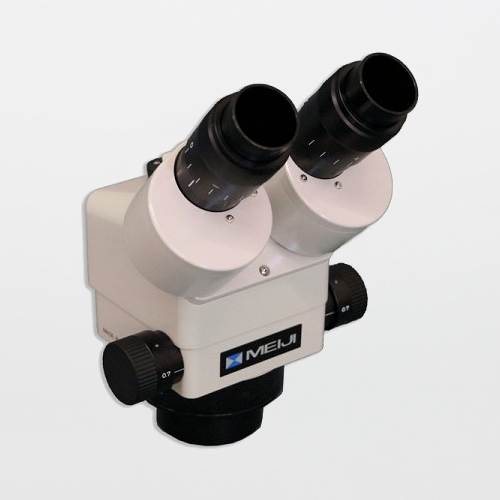

The Meiji EMZ-8U is a modular binocular stereo zoom microscope body built for inspection tasks where operators need true depth perception, a practical zoom range, and enhanced illumination access for challenging surfaces. EMZ-8U adds a Near Vertical Illumination (NVI) light port designed to help reveal features that can be difficult to see under oblique incident lighting—such as holes/bores, cracks, scratches on metal surfaces, IC chips, and fine patterning.
Features- Type: Stereo zoom microscope body (binocular)
- Optical design: Greenough stereo design
- Illumination feature: NVI (Near Vertical Illumination) light port
- Body rotation: 360° rotatable (binocular head)
- Zoom ratio: 6.5:1
- Zoom range: 0.7X – 4.5X
- Zoom control: Dual, graduated, bilateral mount
- Magnification: 7X – 45X (with 10X eyepieces)
- Field of view: 32mm – 5.1mm
- Working distance: 104mm (4.3")
- Eyetube inclination: 45°
- Interpupillary distance: 54mm – 75mm
- Dioptric adjustment: Dual (+/- 5 diopters)
- Extended configuration ranges: 2.1X – 270X magnification; 38mm – 300mm working distances (with optional optics)
