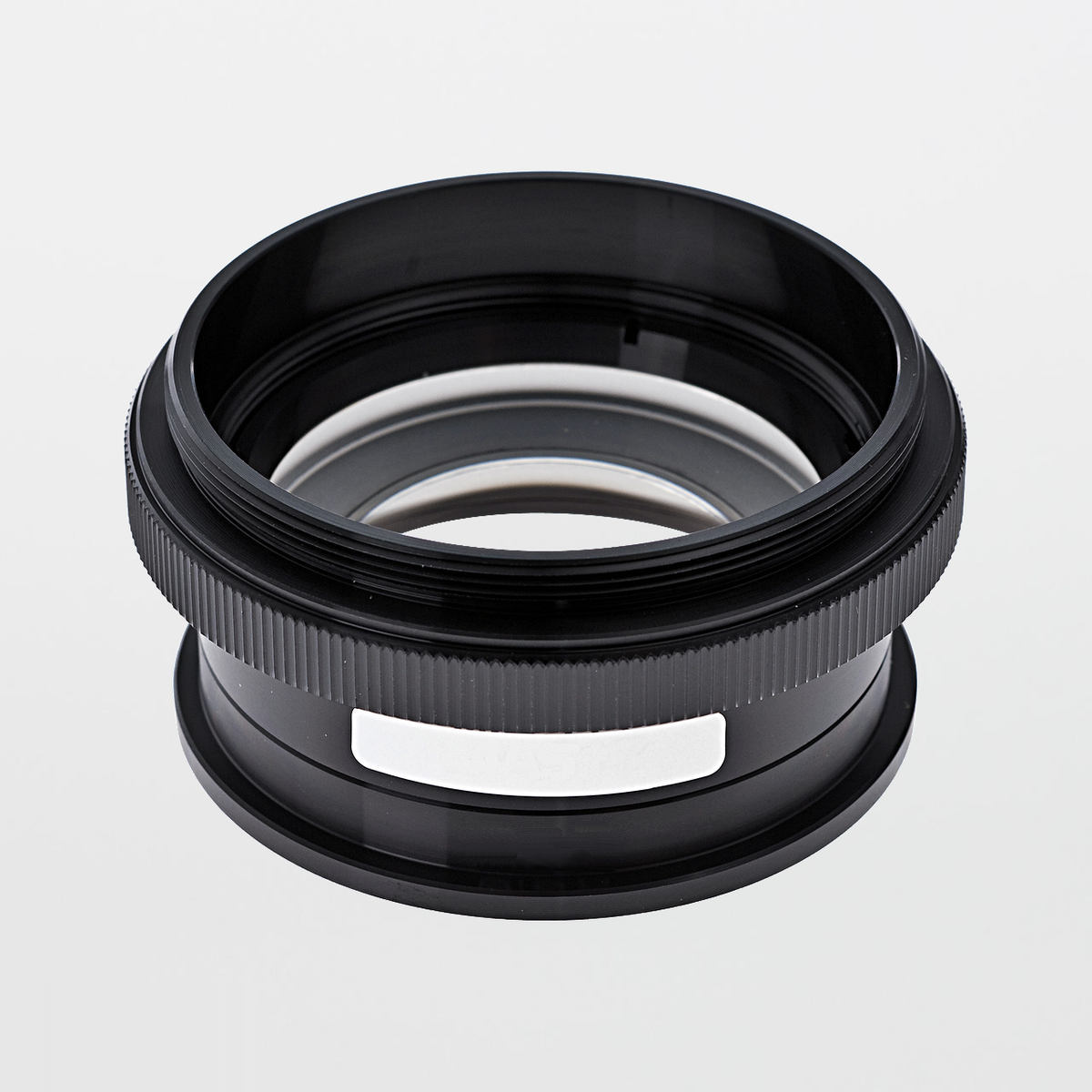

The Meiji MA546 is a 0.5X auxiliary (supplementary) lens designed for Meiji EMZ-10 configurations. It is typically selected to increase working distance and improve clearance for hands-on inspection—especially when operators need room for tools, tweezers, fixtures, and gloved manipulation under the objective. With a published working distance of 194mm, MA546 is a balanced “clearance + usability” option for scan-and-handle benches where 1.0X (or higher) configurations feel cramped.
Features- Accessory type: Auxiliary lens (auxiliary objective / supplementary lens)
- Magnification factor: 0.5X
- Working distance (W.D.): 194mm
- Primary compatibility: EMZ-10 (also referenced for Z-7100 / EMZ-10H in manufacturer literature; confirm to your microscope body)
- Mounting: Auxiliary lenses are typically installed by threading onto the objective interface below the microscope head (system dependent)
- Program note: Eyepieces are ordered as a matched pair; illumination and stand selection determine overall ergonomics and performance
Age group18+
CategoryMicroscopes
Country of originUSA
GenderUnisex
ManufacturerSpecialty Optical Systems / SOS Cleanroom
MpnMA546
Sub brandMEIJI TECHNO
TypeMicroscopes
