Product details
category: Interior Lighting
manufacturer: Soundoff Signal
mpn: EBSDL0001-W
Product Overview
Features

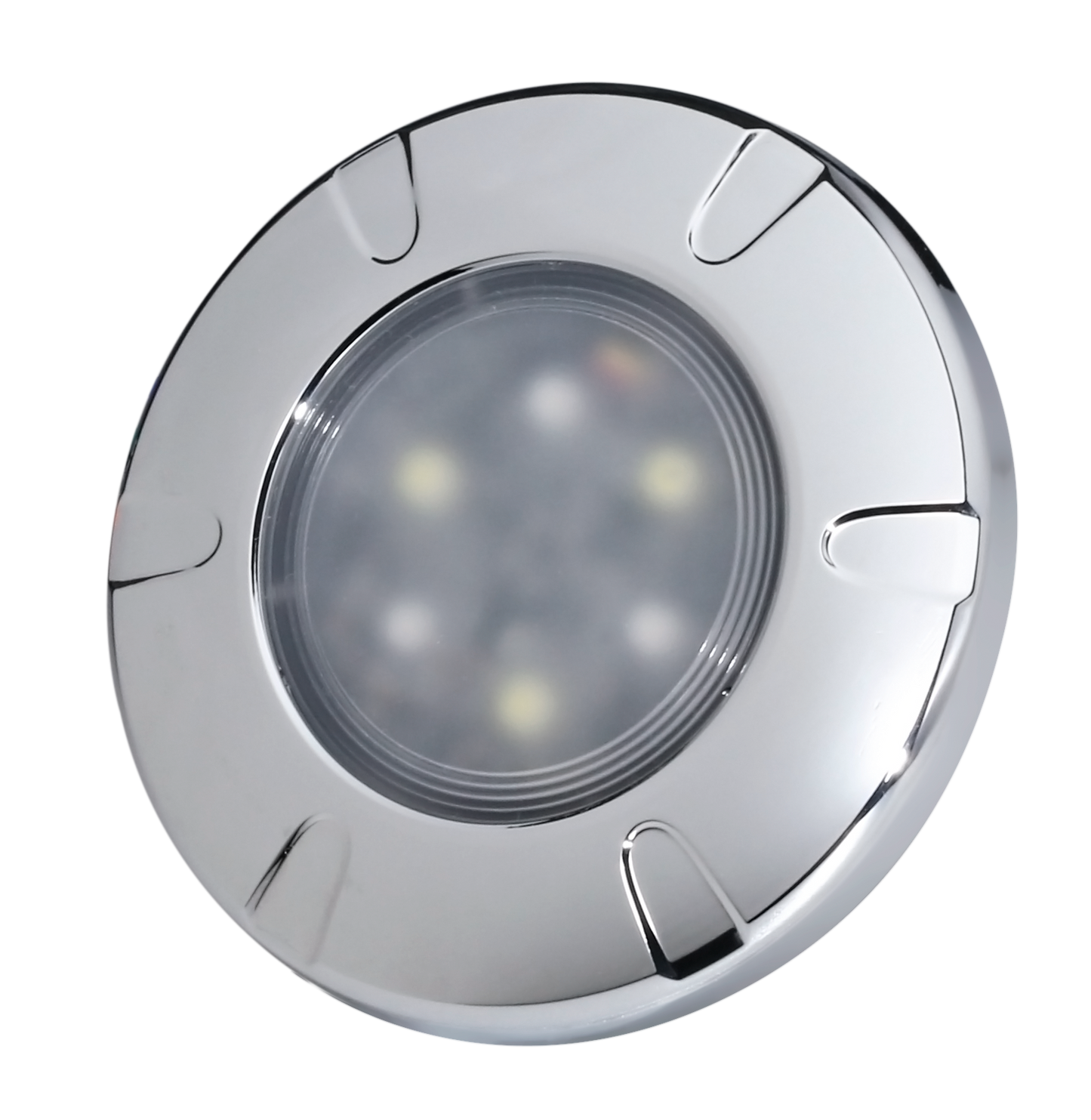

- High performing, standard sized interior compartment light
- Offers a low amp draw, superior efficiency and hours of long-lasting reliability
- Low profile, surface mount design allows for multiple mounting options and easy installation
- Dual color with individual control
- Soft on/off
- Low power dim mode for nighttime
Additional Information
Input Voltage Range 10-32 Vdc
IP RatingIPx8
Standby Current<0.125mA
CertificationsECE R10, CISPR25 Class 3
Max Current0.45A @ 12 Vdc; 0.23A @ 24 Vdc
Optic TypeFlood pattern
Max Power5.4 watts
Operating Temperature -40°C to +65°C
LED Color Options White, white/red, white/blue
Electrical ProtectionReverse polarity, transient protection
Mount TypesSurface mount with adhesive and screw options, Flush mount grommet option sold separately
LED Color Options & CountSingle color - 6 LEDs, dual color - 3 white + 3 colored LEDs
Raw Lumens (Single)White - 390 lm
Raw Lumens (Dual)White - 350 lm, blue - 100 lm
Dimensions3.2" diameter x 0.4" depth (82mm diameter x 10mm depth)
Wire Length8" (200 mm)
Raw Lumens (Dual)White - 350 lm, red - 110 lm
MaterialPolycarbonate lens, aluminum heatsink, ABS plastic bezel
Features
- High performing, standard sized interior compartment light
- Offers a low amp draw, superior efficiency and hours of long-lasting reliability
- Low profile, surface mount design allows for multiple mounting options and easy installation
- Dual color with individual control
- Soft on/off
- Low power dim mode for nighttime
Additional Information
Input Voltage Range 10-32 Vdc
IP RatingIPx8
Standby Current<0.125mA
CertificationsECE R10, CISPR25 Class 3
Max Current0.45A @ 12 Vdc; 0.23A @ 24 Vdc
Optic TypeFlood pattern
Max Power5.4 watts
Operating Temperature -40°C to +65°C
LED Color Options White, white/red, white/blue
Electrical ProtectionReverse polarity, transient protection
Mount TypesSurface mount with adhesive and screw options, Flush mount grommet option sold separately
LED Color Options & CountSingle color - 6 LEDs, dual color - 3 white + 3 colored LEDs
Raw Lumens (Single)White - 390 lm
Raw Lumens (Dual)White - 350 lm, blue - 100 lm
Dimensions3.2" diameter x 0.4" depth (82mm diameter x 10mm depth)
Wire Length8" (200 mm)
Raw Lumens (Dual)White - 350 lm, red - 110 lm
MaterialPolycarbonate lens, aluminum heatsink, ABS plastic bezel
