Product details
category: Interior Lighting
manufacturer: Soundoff Signal
mpn: EBSDL0003-W

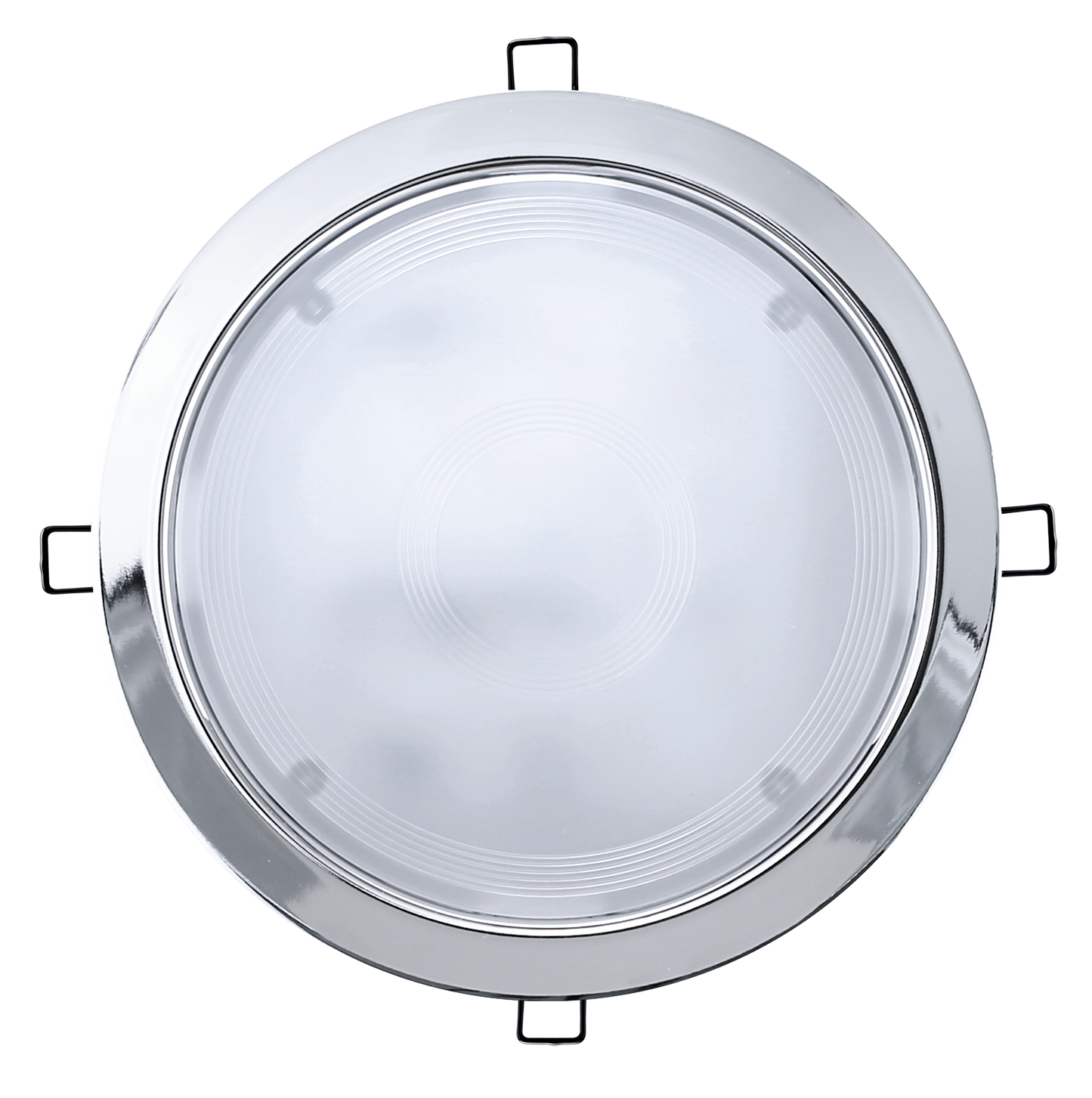

Product Overview
Features
- Intentional light output in a standard sized interior dome
- Offers a low amp draw, superior efficiency and hours of long-lasting reliability
- Snap-in spring clip design for tool-free installation
Additional Information
Input Voltage Range10-16 Vdc
Standby Current<0.125mA
Operating Temperature-40°C to +65°C
Max Current1.1A @ 12Vdc
Max Power13.2 watts
Electrical ProtectionReverse polarity, transient protection
LED Color Options & CountSingle color - 18 LEDs
LED Color OptionsWhite
Raw Lumens (Single)1,107 lm @ full power, 102 lm @ low power
Mount TypesSurface Mount
Dimensions8.5" diameter x 0.94" depth (215mm diameter x 23.9mm depth)
Wire Length8" (200 mm)
MaterialPolycarbonate lens, aluminum heatsink
IP RatingIPx8
CertificationsECE R10
Features
- Intentional light output in a standard sized interior dome
- Offers a low amp draw, superior efficiency and hours of long-lasting reliability
- Snap-in spring clip design for tool-free installation
Additional Information
Input Voltage Range10-16 Vdc
Standby Current<0.125mA
Operating Temperature-40°C to +65°C
Max Current1.1A @ 12Vdc
Max Power13.2 watts
Electrical ProtectionReverse polarity, transient protection
LED Color Options & CountSingle color - 18 LEDs
LED Color OptionsWhite
Raw Lumens (Single)1,107 lm @ full power, 102 lm @ low power
Mount TypesSurface Mount
Dimensions8.5" diameter x 0.94" depth (215mm diameter x 23.9mm depth)
Wire Length8" (200 mm)
MaterialPolycarbonate lens, aluminum heatsink
IP RatingIPx8
CertificationsECE R10
