category:
Directional Warning
manufacturer:
Soundoff Signal
mpn:
EL3PD08B10B
Product Overview

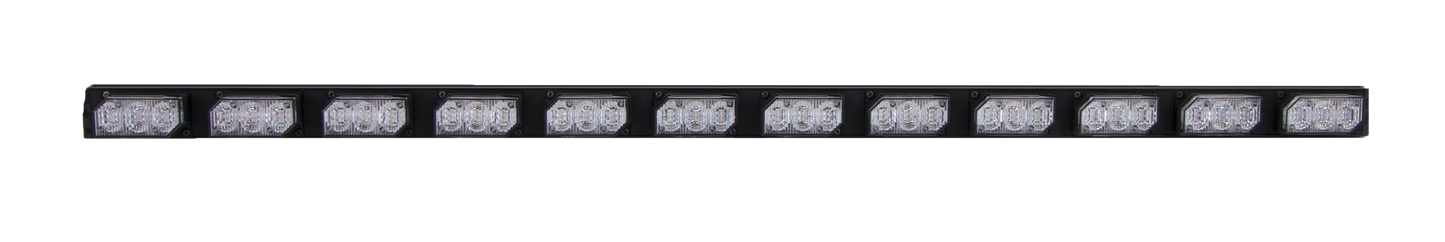

Soundoff Signal EL3PD08B10B Ultralite Plus Exterior Led Directional/Warning Bar - 8 Module W/ Amber Center Modules & Single Warning Ends (Flash Independent From Arrow) Includes Universal L-Brackets W/ 14 Ft Of Wire For Hard Wire Installation - Blue Warning Ends
Features
- Custom color configurations offered for four, eight or twelve module bars
- Program up to three warning patterns on the eight and twelve module dual/split color bars
- Compatible with our directional arrow switch
- Includes adjustable height universal “L” brackets (pair) for dash/deck or headliner mounts w/ 14′ cable
Additional Information
CertificationsSAE J595 Class 1 certified,CA Title 13, Article 22 compliant
Amperage Draw @ 12.8 Vdc<1.0 Amp per module
Dimensions2 module: 7" L x 1.5" H x 1.7" D,4 module: 14.25" L x 1.5" H x 1.7" D,8 module: 26.5" L x 1.5" H x 1.7" D,12 module: 38.75" L x 1.5" H x 1.7" D
Flash Patterns2 module: 33,4 module: 21,8 module solid: 20 (arrow), 12 (warning),8 module split: 19 warning,12 module solid: 20 (arrow), 12 (warning),12 module split: 19 warning
Input Voltage Range10-16 Vdc
LED Color OptionsAmber, Blue, Green, Red, White
