category:
Directional Warning
manufacturer:
Soundoff Signal
mpn:
EMPAKKT02
Product Overview

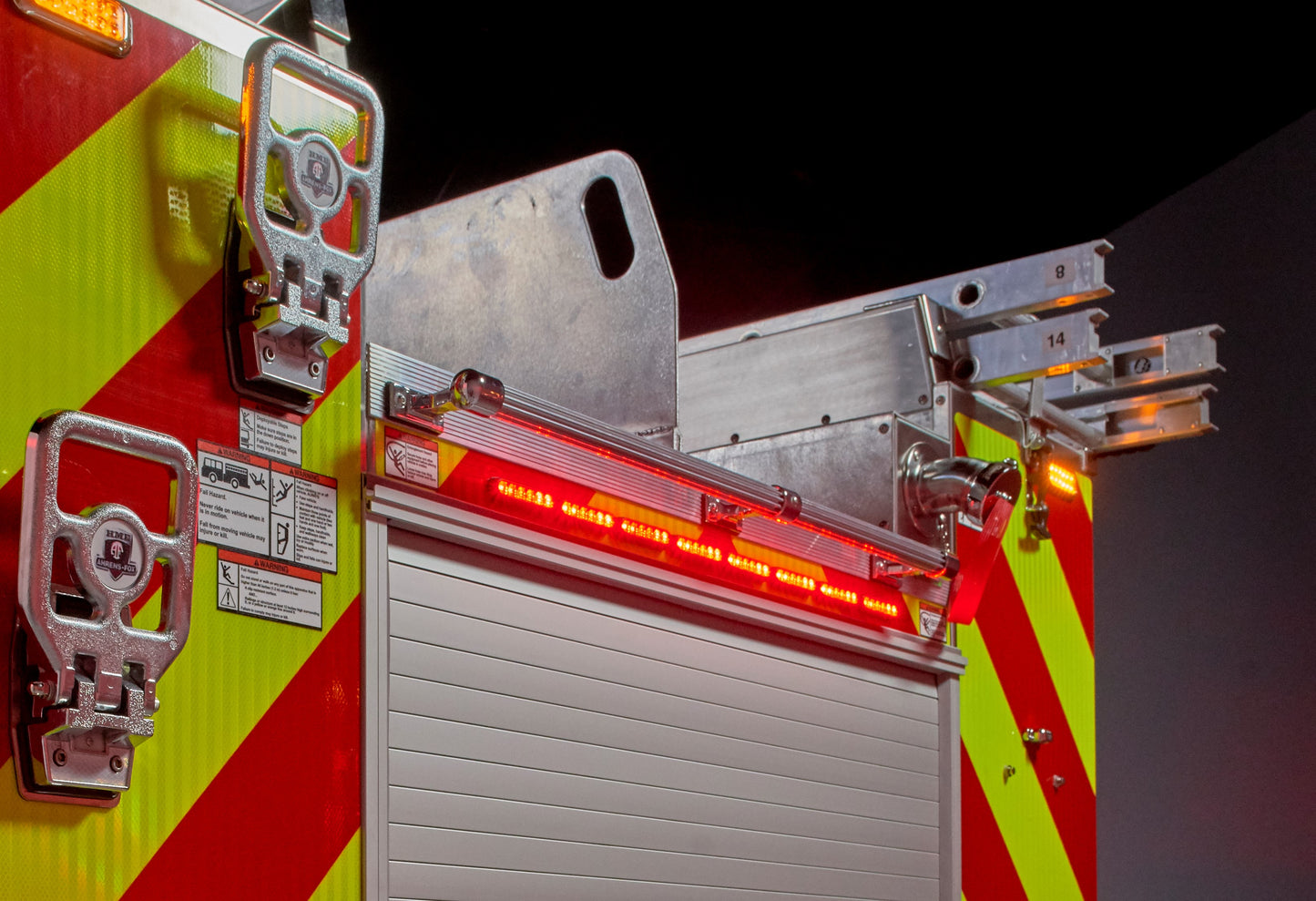

Soundoff Signal EMPAKKT02 Mpower® Arrow Harness Kit, Includes 36" Breakout Box Harness, (1) Breakout Box, (2) Distribution Harnesses And (1) Power/Control Harness - Could Power Up To 8 Lights (No Mounting Brackets)
Features
- Designed for ease, durability and serious optic performance
- mpower Fascia 4" lights made with a durable silicone lens
- Reduces install time with 3-wire technology
- Functionality mimics the rear of a lightbar
- Available in single, dual or tricolor
- Non-bracket option available; parts sold separately
Additional Information
CertificationsSAE J595 Class 1 certified, SAE J845 Class 1 certified, CA Title 13, Article 22 compliant
Standby Current< 1.0 Amp @ 12.8 VDC, < 0.5 Amp @ 25.6 VDC
Flash PatternsOver 140 flash patterns
Input Voltage Range10-30 Vdc
Operating Temperature-40° C to +65° C / -40° F to +149° F
Amperage Draw0.36 Amps @ 12.8 Vdc (Flashing red), 0.62 Amps @ 12.8 Vdc (Peak red), 0.60 Amps @ 12.8 Vdc (Flashing amb, blue, green, white), 0.90 Amps @ 12.8 Vdc (Peak amb, blue, green, white)
LED Color Options & CountSingle color - 6 & 8 LEDs, dual color - 12 LEDs, tricolor - 18 LEDs
Watts4.6 watts (red), 7.7 watts (amber, blue, green, white)
LED Color OptionsAmber, blue, green, red, white
Electrical ProtectionReverse polarity and load dump protected
Arrow Patterns11 arrow patterns
Dimensions (1 piece, 6 mod including brackets)12.5” L x 1.5” D x 1.25” H
Dimensions (1 piece, 8 mod including brackets)17.5” L x 1.5” D x 1.25” H
MaterialGalvannealed steel brackets, silicone LED modules
