category:
Perimeter Lighting
manufacturer:
Soundoff Signal
mpn:
EMPSA05BY-F
Product Overview

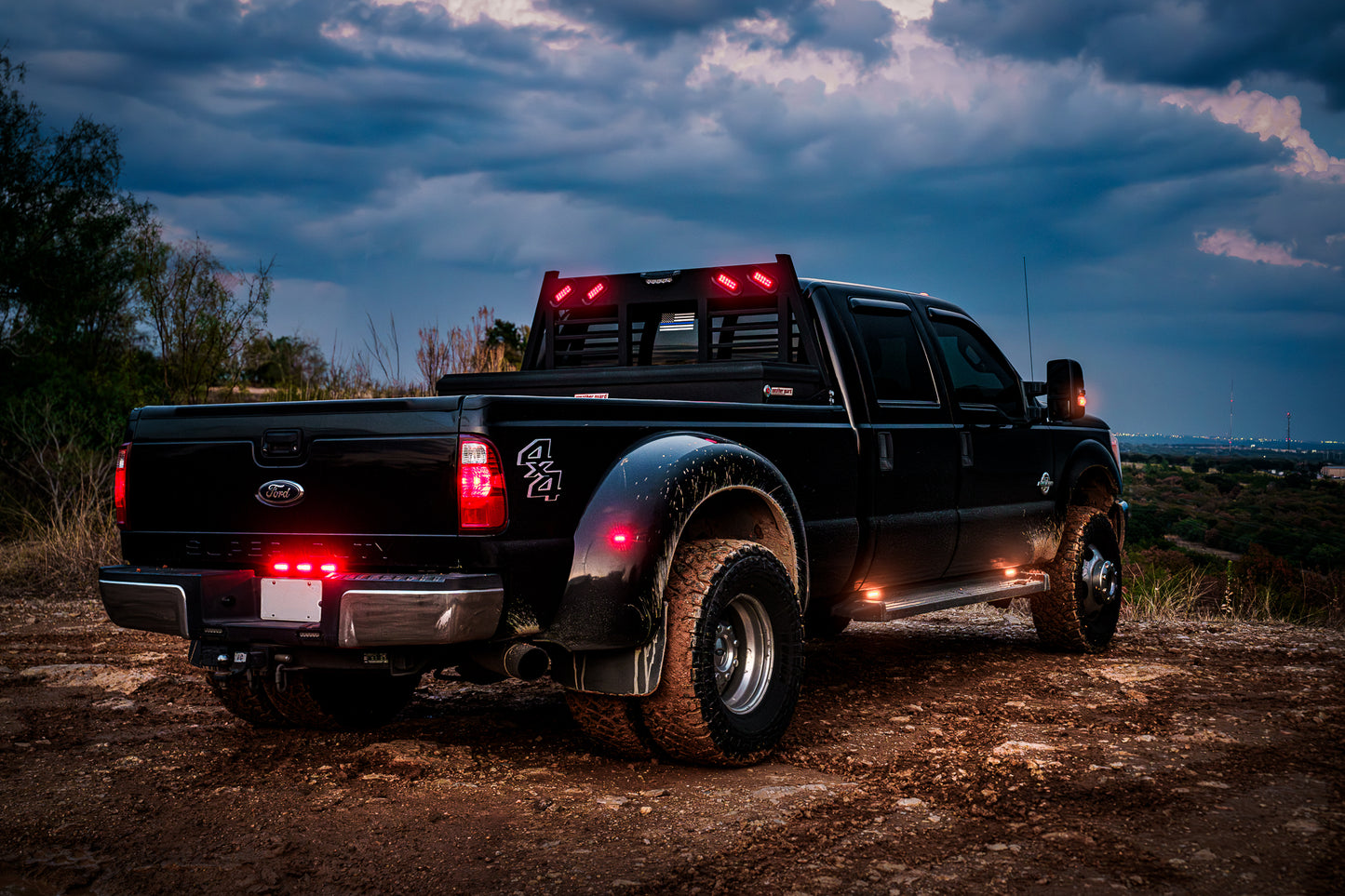

Soundoff Signal EMPSA05BY-F Mpower® Fascia 4X2 Light W/ Screw Mount, 18" 5-Wire W/ Sync Option & 1.5 Pigtail, Sae Class 1 & Ca Title 13, 9-32 Vdc, Black Housing, 24 Led, Dual Color - Amber/White
Features
- Single, dual or tricolor capabilities
- Patented, silicone-molded one-piece housing and optic design delivers advantages over conventional polycarbonate lenses:
- smaller footprint with maximized candela output,
- greater resistance to gravel pitting, scratching or cracking,
- improved sealing to prevent water from entering light,
- Highly resistant to UV light and harsh chemicals—achieving greater clarity when exposed to sunlight
- Compatible with the ConfigureIT system for easy light progamming
Additional Information
Input Voltage Range9-32 Vdc
Operating Temperature-30°C to +85°C
Light SyncUp to 24 lightheads (Sync 2)
DimensionsScrew mount: 4.53" L x 1.5" H x 0.43" D (11.5 cm L x 3.8 cm H x 1.09 cm D),Stud mount: 4.07" L x 1.5" H x 0.43" D (10.34 cm L x 3.8 cm H x 1.09 cm D),Quick mount: 4.07" L x 1.5" H x 0.47" D (10.34 cm L x 3.8 cm H x 1.19 cm D)
Flash Patterns15 warning, backup with warning. 4 turn. 1 stop/tail
Mount TypesStud, quick or screw mount
CertificationsSAE J595, SAE J845, CA Title 13, NFPA 1901, KKK 1822-F, ECE R65, ECE R10
LED OptionsSingle, dual, tricolor
LED CountSingle – 12 & 16 LEDs, Dual – 24 LEDs, Tricolor – 36 LEDs
LED Color OptionsRed, blue, green, amber, white
