category:
Control Systems
manufacturer:
Soundoff Signal
mpn:
ENGND04102
Product Description

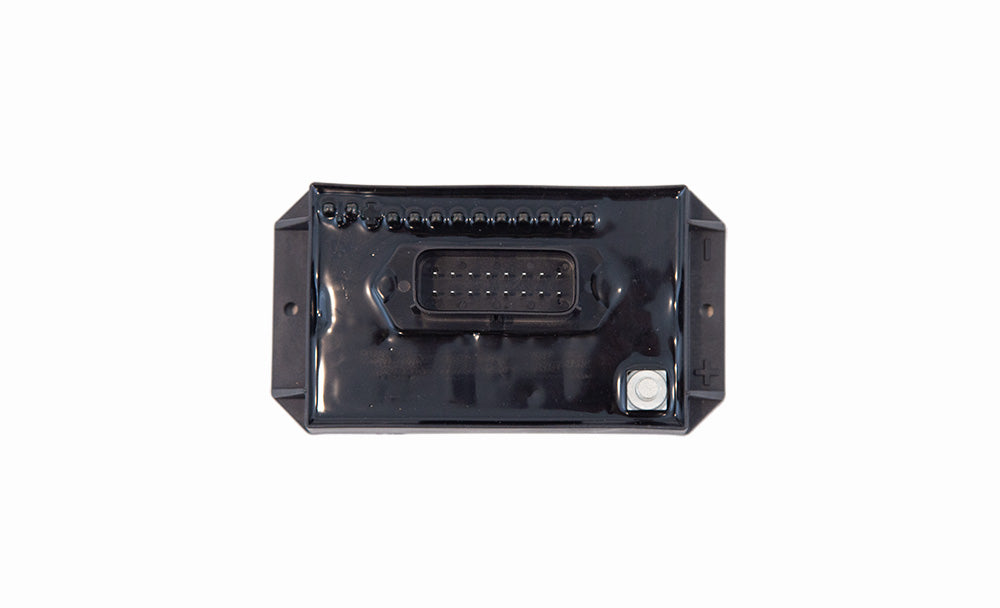

Soundoff Signal - ENGND04102
Features
- Six 5-amp solid state switchable outputs and four 10-amp solid state switchable outputs
- Four positive or negative activated inputs
- Optional ignition wake-up capability for the bluePRINT system
- Works with bluePRINT 2, bluePRINT 3 and SoundOff Central
- Node ID is set using a magnet and can easily retrofis into bluePRINT 2, bluePRINT 3 and SoundOff Central installations
Additional Information
Solid State Switchable Outputs(4) 10-amp, (6) 5-amp
Inputs(4) positive or negative activated inputs, programmable through SoundOff Central
Operating Temperature Maximum Current-40°C to 65°C / -40°F to 149°F - 50A Maximum Fuse, -40°C to 85°C / -40°F to 185°F - 30A Maximum Fuse, -40°C to 105°C / -40°F to 221°F - 15A Maximum Fuse, Above 105°C / 221°F - Not recommended for use
Input Voltage Range9-16Vdc
