category:
Control Systems
manufacturer:
Soundoff Signal
mpn:
ENGND20001
Product Description

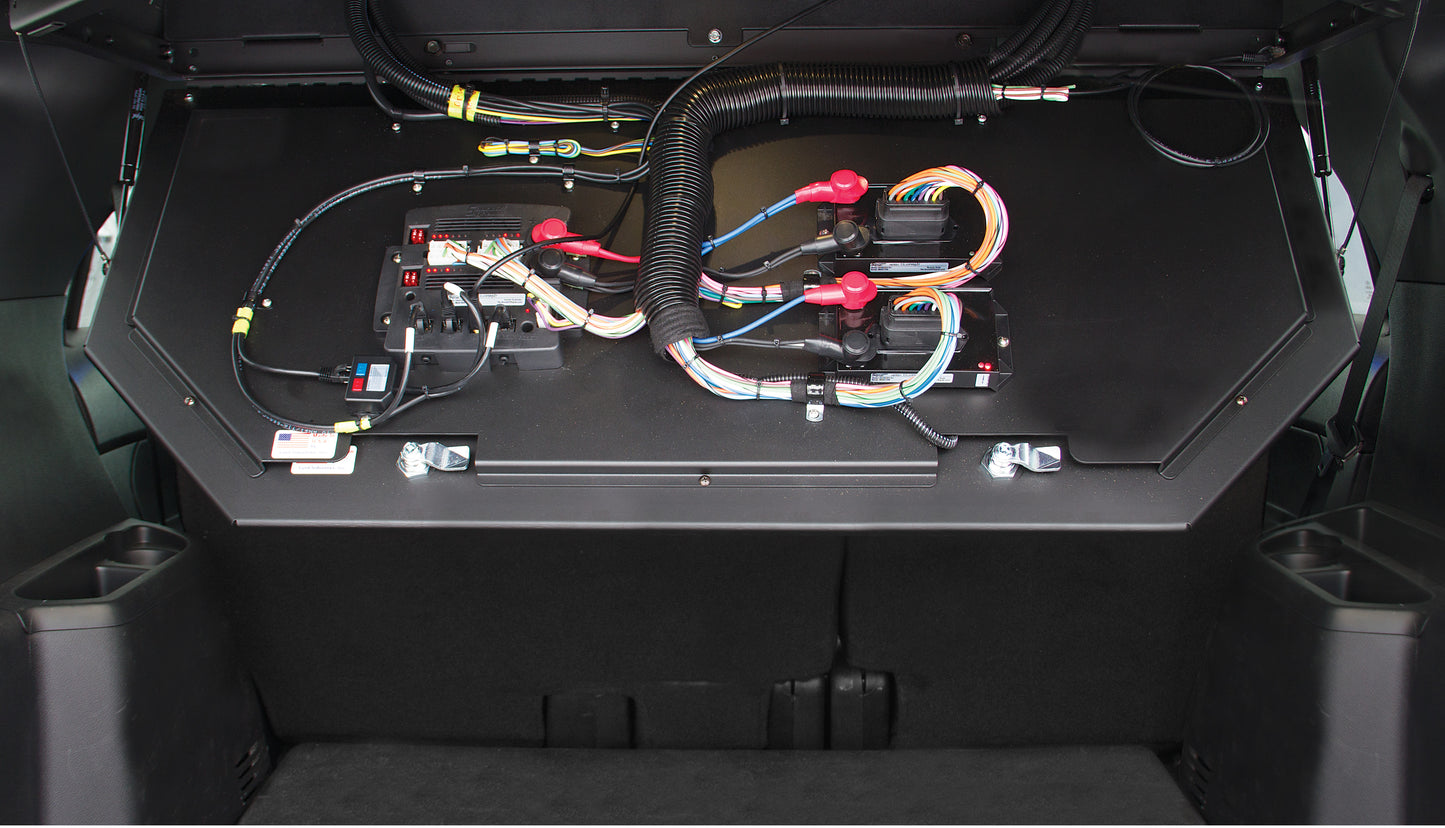

Soundoff Signal ENGND20001 Blueprint® Input Node - Provides 20 Inputs For Connection To Vehicle Devices, 13 Active High/Low Inputs 7 Active High Inputs, Ece R10 Certified
Features
- Provides 20 additional inputs (13 active high/low and 7 active high)
- Connects to bluePRINT 500 Control Systems or Central Controllers through a single wire
- Provides optional ignition wake-up capability for the bluePRINT system
- Works with bluePRINT 2, bluePRINT 3 or SoundOff Central bluePRINT
Additional Information
Input Voltage Range10-16 VDC (negative ground)
Inputs20 Total, (13) Active High/Low Inputs., (7) Active High Inputs, (1) Local IGN Input (Local Sleep Mode)
Operating Temperature-40˚ C to +65° C (-40°F to +149°F)
Dimensions3.5" L x 3.5" H x .75" D
