category:
Torque Tools
country_of_origin:
Germany
data_sheet:
https://cdn.dualityjs.com/api/download/stahlwille/mam/2023/10/47/030245ec-b3db-4cd5-b01e-e3a2af0cc14a.pdf?filename=91979888-ba-manoskop-721-730quick-de-en-fr-es-it-jp.pdf
manufacturer:
Stahlwille
mpn:
50204005
subcategory:
Torque Wrenches, Mechanical
type:
Torque Wrenches Mechanical, With Ratchet
Data Sheet Product Description

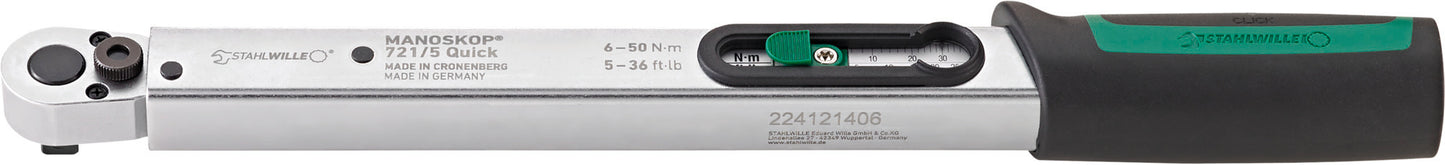

Stahlwille - 50204005
- Made in Germany – STAHLWILLE release torque wrench, ratchet with punch square, length 352 mm, with calibration certificate (DIN EN ISO 6789-2:2017), 50204005.
- Patented, low-wear release system with bending rod.
- Lightning-fast and precise torque adjustment.
- Continued loading after release or loading in the opposite functional direction will not damage the torque wrench.
Features
Factory calibration certificate (ISO calibration)Our torque tools, transducers and test equipment are delivered with a factory calibration certificate in accordance with DIN EN ISO 6789-2 and based on DKD-R 10-8 for traceability of the measuring equipment.
Properties
- click-type
- the measuring element is only under load while force is being applied, no need for manual reset to zero
- rapid setting thanks to easy-action locking lever in the handle
- ergonomically designed, non-slip adjuster with a thumb recess
- dual stop signal
- twin scales N·m/ft·lb
- optimised convex handle for strain-free working
- any force applied to the tool after the 'click' or applied in the opposite direction to the current function – e.g. forcible loosening of a jammed screw - does not act on the trigger mechanism and cannot cause damage to it
- all the sensitive components are protected by the sturdy tubular steel housing
- calibration using perfectControl® calibrating unit No 7794 or calibration system No 7706. Readjustment does not require disassembly
- certificate in accordance with DIN EN ISO 6789-2:2017
- display deviation value ± 4%
