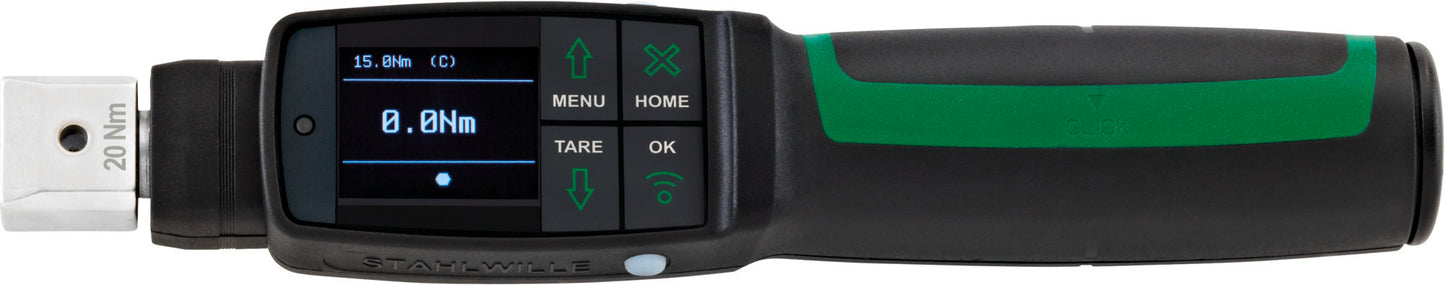

Stahlwille 96500902 714/ 2 Angle And Torque Wrench Manoskop®

Product Description

Stahlwille - 96500902

• An angle and torque wrench for bolted joints in accordance with the torque, angle of rotation, torque with "angle of rotation" monitoring variable and angle of rotation with "torque" monitoring variable tightening method.
• Electromechanically displaying (with electronic measurement) and triggering (with the familiar mechanical “click”).
• Visual evaluation of the bolted joint.
• Simple documentation of the recorded measurements on the PC via the USB interface and via an optional Bluetooth Low Energy module.
• Thanks to the combination of the patented electromechanical triggering and the display and acoustic feedback, the wrench provides signalling with maximum optimisation.

Features

Our 2-component handle is non-slip and ergonomically designed. It is resistant to the most common oils, greases, fuels, brake fluids and Skydrol. The arrow markings on the handle indicate the direction of operation.

Properties

• 4 measuring modes (torque, angle of rotation, torque with “angle of rotation” monitoring variable, angle of rotation with “torque” monitoring variable)
• high-resolution colour OLED display and side signal lights
• visual evaluation of the bolted joint: Yellow light (pre-warning threshold reached), green light (within target range), red light (measurement outside tolerance range)
• freely configurable menu structure
• battery compartment cap with bayonet connection
• optional: Li-ion battery no. 7195-2 and charger no. 7160
• 3 function modes: click (patented electromechanical triggering), peak hold (displaying mode with peak value display) and track (displaying mode with actual value display)
• micro USB interface for data communication
• optional Bluetooth low energy module (5.2)
• QuickRelease security lock - insert tool changing system
• data storage for up to 2,500 tightenings, including date and time stamp
• up to 200 screw joints in a maximum of 25 sequences can be programmed
• different tolerance limits adjustable depending on the type of bolted joint
• acoustic and visual evaluation of the bolted joint
• fast and precise setting via the keypad
• no unintentional adjustments thanks to password-protected keypad lock
• acoustic and visual signal warns of torque wrench overload and forced triggering in clockwise tightening mode
• automatic indication of the next calibration date, user-configurable according to elapsed time and/or number of operations
• fully automatic calibration and adjustment with the perfectControl® calibration and adjustment device No. 7794-2 (torque) or 7794-3 (torque and angle of rotation) for reducing error influencing factors
• units of measurement: N·m, ft·lb, in·lb
• automatic extension length compensation: Possibility of entering a custom extension length to ensure that the required target value is achieved correctly with compensation for the lever extension
• ready for operation again immediately after release
• clockwise and anticlockwise tightening - the insert tool must be rotated for anticlockwise torque in “triggering” function mode
• visual, acoustic and tactile trigger signal
• torque and angle of rotation displays visible at the same time
• measurement regardless of the force application point (for sizes 1, 2 and 4)
• safe handling due to the ergonomically shaped 2-component handle (resistant to the most common oils, greases, fuels, brake fluids and Skydrol)
• 3 certificates included (torque displaying/triggering in accordance with DIN EN ISO 6789-2:2017, angle of rotation based on VDI/VDE 2648-2)
• in sturdy plastic box (sizes 40-100 in sheet steel box)
• registered design, patented
• supplied with SensoMaster 4 software, USB cable, 4 micro-batteries AAA/LR03, 1.5 V
• angle of rotation display resolution 0.1°
• angle of rotation display deviation  ±1°, ±1 digit to 100°, >100° at least 1%, ± 1 digit
• torque display resolution ≤ 60 N·m: 0.01 N·m; > 60 N·m: 0.1 N·m; >400 N·m: 1 N·m
• torque display deviation ± 2%, ± 1 digit
