Stahlwille 98814915 13221 WT/TS Aog-Kit For Aircraft In Tool Trolley No. 13217

Product Description

Stahlwille - 98814915

• 206-piece metric AOG set with HPQ® aircraft tools in a tool trolley.
• Specially tailored tool set for fast, efficient, and reliable maintenance and repair.
• The professional tools combine the lowest manufacturing tolerances with the highest power transmission and durability.
• Thanks to the QuickRelease locking system, accidental tool loss is reliably prevented.
• Storing tools in the STAHLWILLE Tool Control System (TCS) combines the highest level of safety and efficiency.

Features

Our HPQ® tool is made of wear-resistant high-performance steel, yet is thin-walled and lightweight. It withstands high torques and is ideal for work in confined spaces such as turbines.

Properties

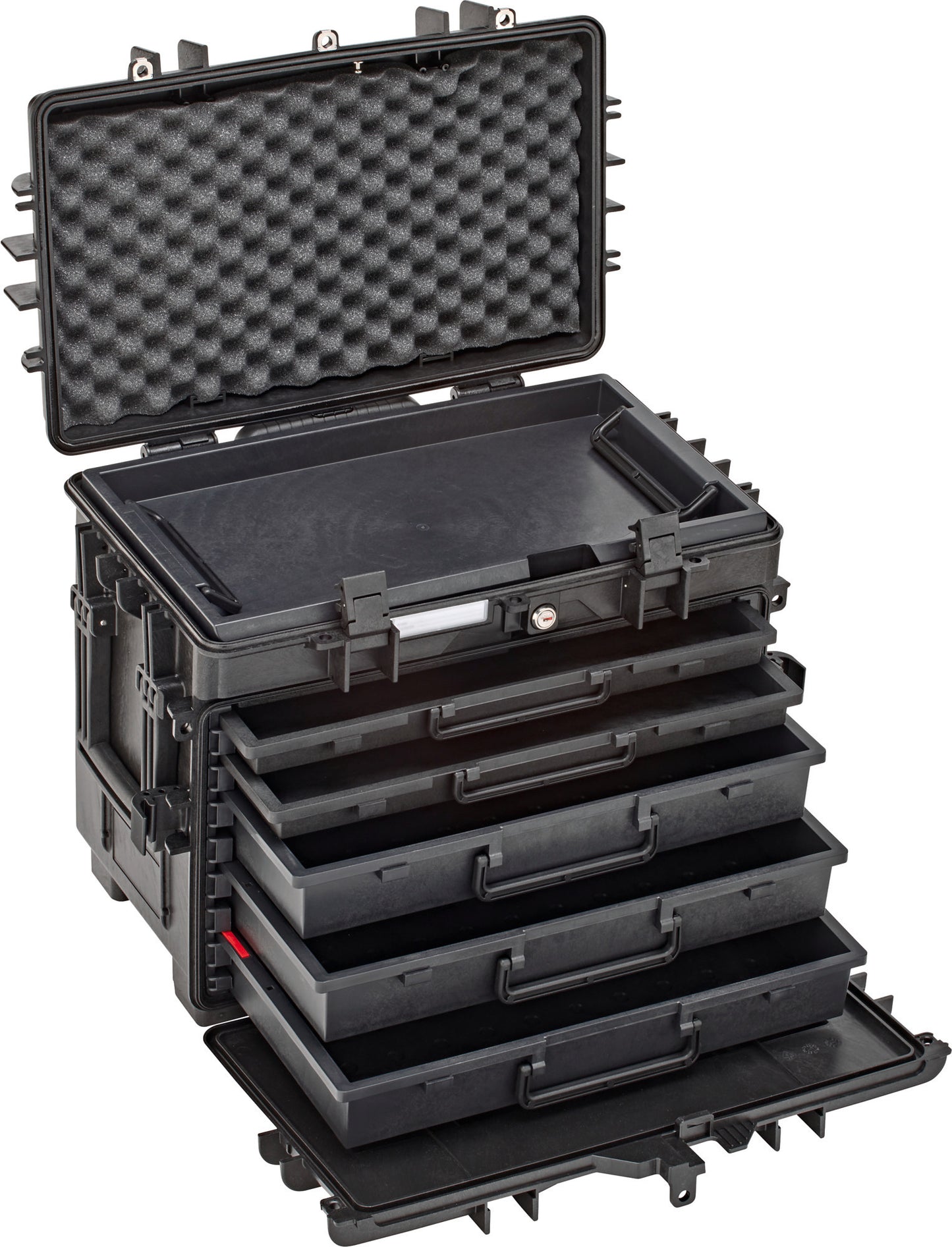

Key features of the tool trolley:

• for service and maintenance work on aircraft and helicopters
• robust and durable tool trolley made of polypropylene for professional use
• 7 easily removable, lockable drawers with pull-out stops in 2 different heights
• 1 removable shelf with 2 handles
• 2 transparent drawer lids beneath the upper lid
• 2 smooth-running double castors on the telescopic handle side
• drawers can be used as a separate toolbox thanks to the transparent lids
• with one upper and one front removable lid
• extendable telescopic handle and 2 side handles
• resistant to Skydrol, acetone, petrol and hydraulic oils
• lockable in 3 positions with a padlock
• with the Tool Control System (TCS) modular tool insert system

Contents: 206-piece set in TCS inserts

96830133, TCS 13217 WT 13221/1

10 double hex sockets 1/4" No. 40D: 5; 6; 7; 8; 9; 10; 11; 12; 13; 14 mm

10 double hex sockets 1/4" No. 40aDL: 3/16; 7/32; 1/4; 9/32; 5/16; 11/32; 3/8; 7/16; 1/2; 9/16"

10 double hex sockets 3/8" No. 45: 10; 11; 12; 13; 14; 15; 16; 17; 18; 19 mm

8 double hex sockets 3/8” No. 45a: 15/16; 1; 1/2"; 9/16; 19/32; 5/8; 11/16; 3/4"

1 bit ratchet No. 4008-1: 1/4"

2 QuickRelease extensions 3/8" No. 426QR: L. 75; 160 mm

2 QuickRelease extensions 1/4" No. 408QR: L. 55; 150 mm

1 QuickRelease universal joint 1/4" No. 407QR: L. 45 mm

1 Quick-Release universal joint 3/8" No. 428QR: L. 60 mm

1 QuickRelease fine tooth ratchet No. 415QR N: 1/4"

1 mini-bit fine tooth ratchet 1/4" No. 418B: L. 90 mm

1 QuickRelease fine tooth ratchet 3/8" No. 435QR N: L. 193 mm

1 LED torch No. 13128: 320 lumens

1 reducer No. 431: 1/4" outer square 3/8" inner square

1 bit holder No. 412: 1/4"

1 bit set No. 1208: 1 quick release chuck 1/4" | L. 25 mm: SL4.5;6.5;8 mm | PH1;2;3 (2x) | T6;15;20 | T-SET 4;6;8;10 (2x) | INHEX 5/64;9/64;1/8;3/16;5/32;7/64;3/32;7/32" | adaptor 1/4" 4KT/6KT | 30-piece

96830134, TCS 13217 WT 13221/2

1 FastGRIP pipe wrench No. 6572: L. 240 mm

1 telephone pliers No. 6731: L. 200 mm

1 connector pliers No. 6576 L. 230 mm

1 electronic wire cutter, polished No. 6707: L. 115 mm

1 combination pliers No. 6700: L. 160 mm

1 wire twisting pliers No. 6575 1: L. 230 mm

1 telescopic mirror No. 12921N: D. 50 mm

1 long nose gripping pliers No. 6571: L. 165 mm

1 Camloc plier 4P3: L. 190 mm

96830135, TCS 13217 WT 13221/3

1 measuring tape No. 12935/3: L. 3 m

1 spark plug brush No. 12375: L. 150 mm

1 precision feeler gauge No. 11095/20: 0.05; 0.10; 0.15; 0.20; 0.25; 0.30; 0.35; 0.40; 0.45; 0.50; 0.55; 0.60; 0.65; 0.70; 0.75; 0.80; 0.85; 0.90; 0.95; 1.00 mm

1 scriber No. 12321: L. 250 mm

1 calliper No. 12900N: L. 150 mm

1 claw gripper No. 12922: L. 540 mm

1 steel rulerNo. 13110: L. 300 mm

1 tweezers No. 13130: straight, L. 160 mm

1 plastic scraper, medium blade No. 10678: L. 170 mm

1 plastic scraper, narrow blade No. 10679: L. 170 mm

1 plastic scraper, angled blade No. 10680: L. 174 mm

1 plastic scraper, pointed blade No. 10681: L. 175 mm

1 brass mandrel No. 12495: L. 200 mm

1 pin magnet lifter No. 12601 : L. 145 mm

1 tyre tread caliper No. 12900/3: MB: 0-30 mm

1 safety knife (cutter) No. 12965N: L. 174 mm

96830136, TCS 13217 WT 13221/4

1 drive handle 1/4" No. 400: L. 150 mm

8 double hex sockets, long 1/4" No. 40DL: 5; 6; 7; 8; 10; 11; 12; 13 mm

1 key file setNo. 128000: 6-piece set

1 engineer’s hammer No. 10961: 500 g

1 soft-faced hammer No. 10959: D. 30 mm

1 step-up adapter 1/4" to 3/8" No. 409: L. 25 mm

4 pin punches No. 109: 1.4; 2.8; 3.4; 3.9 mm

96830137, TCS 13217 WT 13221/5

1 open-end spannerNo. 10: 27 x 32 mm

12 OPEN RATCH combination ratcheting spanners No. 17: 8; 9; 10; 11; 12, 13; 14; 15; 16; 17; 18; 19 mm

96830138, TCS 13217 WT 13221/6

1 offset screwdriver set No. 10767a/13: 13-piece set

1 ball-ended hex key set No. 10767H/9: 9-piece set

4 electronic slotted screwdriver No. 4751: 0.3 x 1.5 x 40; 0.4 x 2.0 x 60; 0.4 x 2.5 x 75; 0.5 x 3.0 x 75 mm

2 electronic PHILLIPS® screwdrivers No. 4752: PH0; PH1

1 DRALL® carburettor screwdriver for slotted screws No. 4724: 1.0 x 5.5 x 25 mm

1 PHILLIPS® screwdriver DRALL®No. 4744: PZ1

1 hook tool No. 13001: 45°

1 DRALL+ slotted screwdriver with impact cap No. 4622SK: 0.8 x 4.0 x 90 mm

1 PHILLIPS® DRALL+ screwdriver No. 4632SK: PH1

96830139, TCS 13217 WT 13221/7

9 open-end spannersNo. 10: 4 x 5; 6 x 7; 8 x 9; 10 x 11; 12 x 13; 14 x 15; 16 x 17; 18 x 21; 19 x 22

6 combination spanners OPEN BOX No. 13a: 3/8; 7/16; 1/2; 9/16; 5/8; 11/16"

1 spanner, adjustable No. 4025 6: AF max. 24 mm

96830140, TCS 13217 WT 13221/8

8 double-end ring spannerNo. 23: 6 x7; 8 x 9; 10 x 11; 12 x 13; 14 x 15; 16 x 17; 18 x 19; 20 x 22 mm

1 PHILLIPS® DRALL+ screwdriver No. 4632SK: PH2

2 TORQ-SET® screwdrivers DRALL®No. 4636: 4; 8 mm

1 DRALL+ slotted screwdriver with impact cap No. 4622SK: 1.2 x 6.5 x 125 mm

1 pin extractor No. 13009: L. 265 mm

1 PHILLIPS® DRALL+ screwdriver with impact cap No. 4632SK: PH3

1 round awl No. 10758: L. 280 mm
