UEI Test Instruments

UEI Test 511KIT Heat Pump Install Kit

UEI Test 511KIT Heat Pump Install Kit

Dropship

Get it by Fri, Dec 13 - Wed, Dec 18

SKU kpi097-511KIT

$1,243.28 USD
$1,243.28 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Specialty Testers
manufacturer: UEI Test Instruments
mpn: 511KIT

Product Description

UEI Test Instruments - 511KIT This Kit provides the recommended test instruments required by heat pump start up manuals for proper installation and maintenance. Most equipment warranties require initial install readings to be documented upon installation.

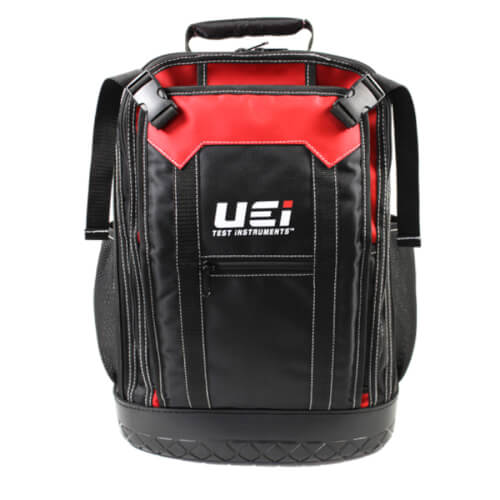

511KIT is packed in this UEi Tool Backpack, which is built rugged with a waterproof base and features two compartments with inner pockets and an included D-clip.

Includes
  • Meter: DL579
  • Manometer: EM720SPKIT
  • Leak Detector: RLD15B
  • Batteries: AAA (4), AA (9),9V
  • Wireless Outside Temperature probe: WOT2
  • Wireless Hygrometer probe: WHP1 (2)
  • Wireless Vacuum Gauge probe: WVG2
  • Wireless Pressure probe: WPP1 (2)
  • Wireless Pipe Clamp probes: WPC2 (2)
  • Tool backpack: AC550
Features
  • Manufacturer requirements to maintain warranty
  • CFM via external static pressure test
  • System is free from refrigerant leaks
  • Proper high voltage to power supply and ground
  • Low voltage meets wiring diagram requirements
  • Evacuation SuctionLiquid valves
  • Temperatures of SuctionLiquid lines
  • Superheat and Subcool values for adjustments
  • Hold : Yes
  • Min/Max: Yes
  • Auto power off: Yes
  • Display count: 6000
  • Dual display: Yes
  • Temperature inputs: K-Type
  • Dual pressure input: Yes
  • Warranty: Various
  • Digital numeric leak indicator: Yes
  • K-type input: Yes
  • Digital: Yes
Specifications
  • TRMS : Yes
  • AC volts: 750V AC
  • DC volts: 1000V DC
  • AC current (amps): 600A AC
  • AC micro current (amps): 2000µA
  • DC micro current (amps): 2000µA
  • DC micro volts: 600mV
  • AC micro volts: 600mV
  • Resistance (Ohms): 60
  • Capacitance (Farads): 6000
  • Frequency (Hertz): 99.99kHz
  • Duty cycle (%): 1.0 to 99.0%
  • Temperature: -328 to 2462 degrees F
  • Continuity: Yes
  • Diode: Yes
  • NCV detection : Yes
  • Hygrometer - temp range: 32 to 140 degrees F
  • Microns range: 0 to 20000 microns
  • Pressure range : 60 InH2O
  • Pipe Clamp - temp range: 32 to 180 degrees F
  • Pressure: 0 to 725 PSIG
  • Super Heat: 32 to 180 degrees F
  • Subcool: 32 to 180 degrees F
  • Vapor/Liquid saturation: 32 to 180 degrees F
  • Relative humidity : 0% to 100%
  • Detects: Refrigerant
  • Senses HFC, CFC and HCFC refrigerants and blends: Yes
  • Detection sensitivity: .05 oz/year
  • LRA Inrush: Yes
  • Low Z: Yes
