UEI Test 520KIT Test and Check Professional Kit

Product Description

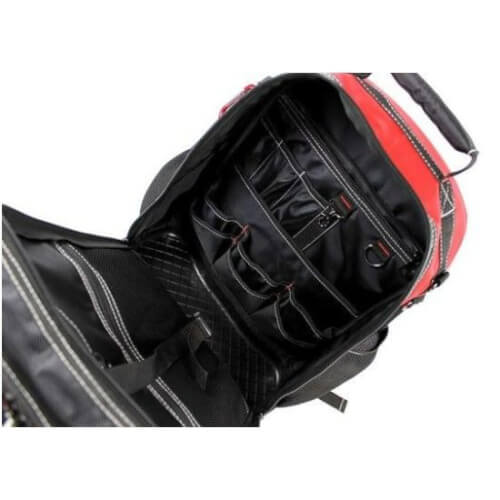

UEI Test Instruments - 520KIT This Kit provides the recommended test instruments required by furnace start up manuals for proper installation and maintenance. Most equipment warranties require initial install readings to be documented upon installation. 520KIT is packed in our UEi Tool Backpack. Built rugged, waterproof base, two compartments with inner pocket options and includes D-clip.

This equipment helps confirm:
Manufacturer requirements to maintain warranty
CFM via external static pressure test
Gas flow pressure
System is safe from gas leaks
Proper high voltage to power supply and ground
Low voltage meets wiring diagram requirements

Features:

• Hold: Yes
• Min/Max: Yes
• Auto power off: Yes
• Display count: 6000
• Backlight: Yes
• Dual display: Yes
• Temperature inputs: K-Type
• Protective boot or overmolding: Yes
• Dual pressure input: Yes
• Differential pressure: Yes
• Zero: Yes
• Selectable units: Yes
• Magnetic mount: Yes
• Warranty: Various
• Hi-Resolution accuracy: Yes
• K-type input: Yes
• Folding temp probe: Yes
• Digital: Yes

Specifications:

• TRMS: Yes
• AC volts: 750VAC
• DC volts: 1000VDC
• AC current (amps): 600A AC
• AC micro current (amps): 2000µA
• DC micro current (amps): 2000µA
• DC micro volts: 600mV
• AC micro volts: 600mV
• Resistance (Ohms): 60MOhms
• Capacitance (Farads): 6000µF
• Frequency (Hertz): 99.99kHz
• Duty cycle (%): 1.0 to 99.0%
• Temperature: -328° to 2462°F
• Continuity: Yes
• Diode: Yes
• NCV detection: Yes
• Pressure: ±60 InH2O
• Differential temperature: Yes (PDT655)
• Detects: Combustible Gas
• Detection sensitivity: 50ppm methane
• LRA Inrush: Yes
• Low Z: Yes

Includes:

• Meter: DL579
• Manometer: EM201SPKIT
• Leak Detector: CD100A
• Thermometer: PDT655
• Batteries: AA. (2), CR2032, 9V
• Tool backpack: AC550
