category:
Clamp Meters
manufacturer:
UEI Test Instruments
mpn:
DL379B
subcategory:
Meters
Product Overview

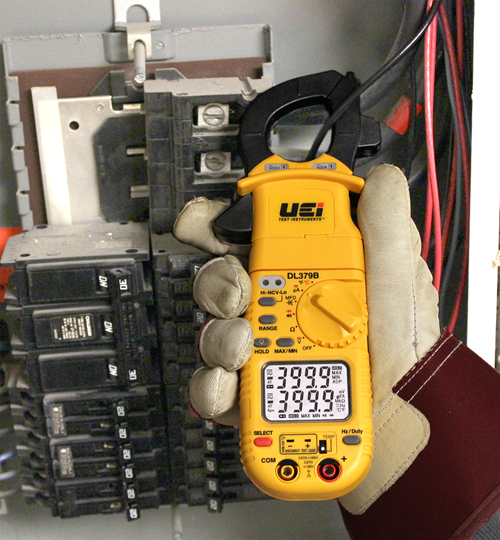

Digital HVAC Clamp meter with dual display, dual level NCV and CATIV 300V rating
Features- Hold Yes
- Min/Max Yes
- Ranging Auto/Manual
- Auto Power Off Yes
- Display Count 4000
- Low Battery Warning Yes
- Backlight Yes
- Dual Display Yes
- Worklight Yes
- Temperature Inputs K-Type
- Magnetic Mount Yes
- Warranty 3-year limited
- Hi/Lo Alarm Yes
- K-Type Input Yes
- AC Current (Amps) 400A
- AC Micro Current (Amps) 2000µA
- DC Micro Current (Amps) 2000µA
- AC Volts 750V
- DC Volts 1000V
- Resistance (Ohms) 40 MΩ
- Diode Yes
- Capacitance (Farads) 2000µF
- Temperature -22°F to 752°F (-30˚ to 400˚C)
- Frequency (Hertz) 9.999Hz - 199.9kHz
- Duty Cycle (%) Yes
- Continuity Yes
- NCV Detection Hi/Lo levels
