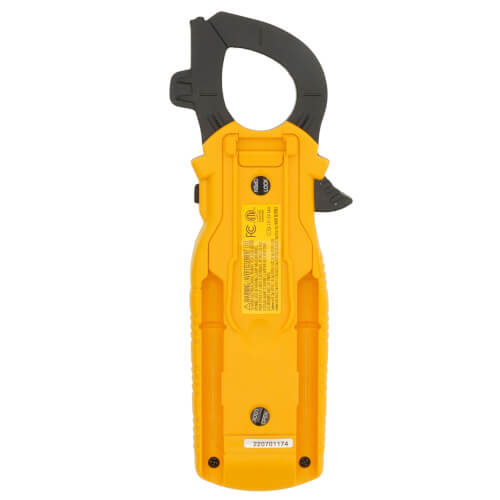

UEI Test DL579COMBO True-RMS Dual Display 600A HVAC/R Clamp Meter w/ Temperature & Capacitance Combo

Product Description

UEI Test Instruments - DL579COMBO True-RMS Dual Display 600A HVAC/R Clamp Meter w/ Temperature Capacitance Combo measures capacitance, voltage, circuit continuity, resistance, temperature via K-Type thermocouples and diode malfunctions.

Features:

• Check system boards and live wires
• TRMS
• Dual Display
• Backlight
• Min/Max/Hold
• Test Lead Storage
• High-voltage alert
• Easy access battery cover latches
• Raised molding
• Auto and manual ranging
• Auto Off
• Low battery indicator
• 1-Year limited warranty

Specifications:

• Display count: 6000
• Low battery warning: Yes
• Protective boot or overmolding: Yes
• AC Volts: 750VAC
• DC Volts: 1000VDC
• AC current (amps): 600A AC
• DC current (amps): 600A DC
• Resistance (Ohms): 60MOhms
• Temperature: -328° to 2462°F
• Capacitance (Farads): 6000µF
• Continuity: Yes
• Diode: Yes
• NCV Detection: Yes

Includes:

• Test Leads (ATL55)
• Alligator Clips (AAC3)
• 2 Temperature Probes (ATT29)
• Zippered Pouch
• 2 Batteries (AAA)
• Pipe Clamp Probe (ATTPC4)
• Manual
