country_of_origin:
TW
manufacturer:
US Motors
mpn:
3566
Product Description

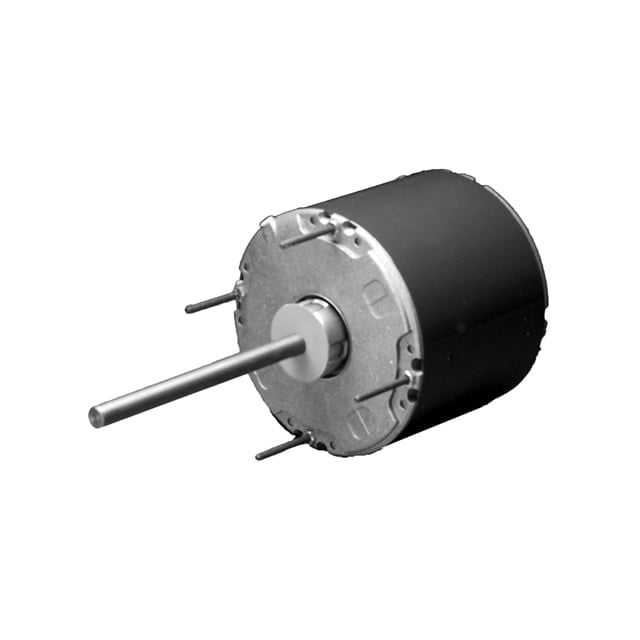

US Motors - 3566
Features- Permanent Split Capacitor
- Commercial Condenser Fan
- 6.3" Dia. Open Dripproof Air Over
- All Angle Mounting
- Hub or Stud Mount
Additional Information
PHASETYPE:1_PERMANENT SPLIT CA
MOTOR ENCLOSURE:ODP
HORSEPOWER:.75
KILOWATTS:0.6
POLES:6
NUMBER SPEEDS:1
RPM:1075
HERTZ:60
VOLTS PRIMARY:208-230 V
VOLTS :208
VOLTS 2:230
FRME :56
SHAFT CODE:Z
STATOR DIAMETER:6.3
STACK:2.25
MOUNTING:STUD/BAND
MOTOR TYPE:FHP
OPPOSITE END BEARING:BALL
SHAFT END BEARING:BALL
ROTATION:REVERSIBLE
SERVICE FACTOR:1
SHIPPING WEIGHT:27
THERMAL PROTECTION:AUTOMATIC RESET
BREAKDOWN TORQUE:83.98
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:4.672
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:B
LOCKED ROTOR AMPS:11.79
