country_of_origin:
TW
manufacturer:
US Motors
mpn:
4748

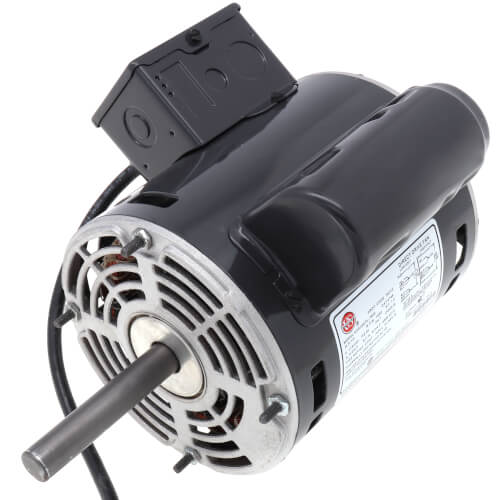

Product Description
Features- Permanent Split Capacitor
- Centrifugal Ventilation Direct Drive Blower
- Open Air Over (OAO)
- 5.0" and 5.6" Diameter
- Stud Mount
Additional Information
PHASETYPE:1_PERMANENT SPLIT CA
MOTOR ENCLOSURE:OPEN
HORSEPOWER:.5
KILOWATTS:0.4
POLES:4
NUMBER SPEEDS:1
RPM:1650
HERTZ:60
VOLTS PRIMARY:115/230 V
VOLTS :115
VOLTS 2:230
FRME :48
SHAFT CODE:YZ
STATOR DIAMETER:5.5
STACK:2.5
MOUNTING:STUD
MOTOR TYPE:FHP
OPPOSITE END BEARING:BALL
SHAFT END BEARING:BALL
AMBIENT:40
ROTATION:CW LEAD END REV
SERVICE FACTOR:1
RUNCAPMFD:20
RUNCAPVOLTS:370
SHIPPING WEIGHT:22
THERMAL PROTECTION:AUTOMATIC RESET
BREAKDOWN TORQUE:48.56
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:11.93
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:B
LOCKED ROTOR AMPS:16.4
NEMA NOMINAL EFFICIENCY:70
FULL LOAD AMPS PRIMARY:8.0/4.0
SERVICE FACTOR AMPS PRIMARY:8.0/4.0
