country_of_origin:
TW
manufacturer:
US Motors
mpn:
ACT095
Product Description

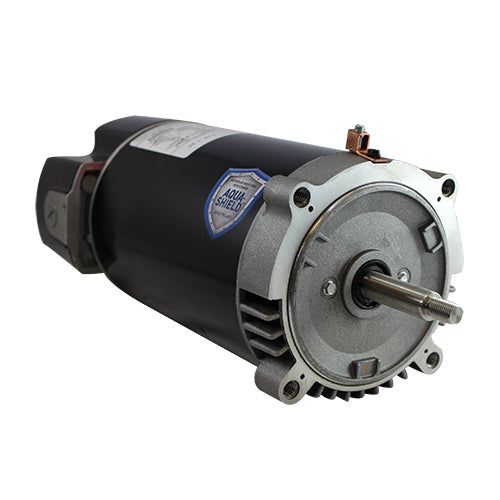

US Motors - ACT095
Features- AQUA-SHIELD EZ48 Pool Spa Motor
- Switch Design 5.5" Frame Dia.
- C-Flange Category "J"
- High Efficient 7/16-20 Thread
- THP Rated 1081 Design
Additional Information
PHASETYPE:1_CAPACITOR START -
MOTOR ENCLOSURE:ODP
HORSEPOWER:.95
POLES:2
NUMBER SPEEDS:1
RPM:3450
HERTZ:60
VOLTS PRIMARY:230/115 V
VOLTS :230
VOLTS 2:115
FRME :56
SHAFT CODE:J
STATOR DIAMETER:5.5
STACK:2
MOUNTING:C-FACE
MOTOR TYPE:FHP
OPPOSITE END BEARING:6203
SHAFT END BEARING:6203
AMBIENT:50
ROTATION:CCW DRIVE END
RUNCAPMFD:25
RUNCAPVOLTS:370
STARTCAPMFD:374
SHIPPING WEIGHT:17
THERMAL PROTECTION:AUTOMATIC RESET
BREAKDOWN TORQUE:50.64
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:48.67
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:B
KVA CODE LETTER:F
LOCKED ROTOR AMPS:36.47
FULL LOAD AMPS PRIMARY:4.6/9.2
