country_of_origin:
TW
manufacturer:
US Motors
mpn:
AGH15FL2CS
Product Description

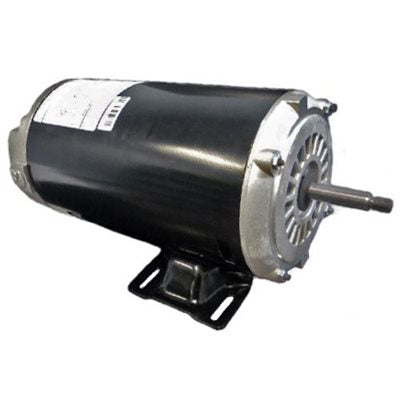

US Motors - AGH15FL2CS
Features- Thru-Bolt Pool Spa Motors
- 5.5" Frame Diameter
- Two Speed Soft Start
Additional Information
PHASETYPE:1_CAPACITOR START
MOTOR ENCLOSURE:ODP
HORSEPOWER:1.5
HORSEPOWER 2:0.125
KILOWATTS:1.1
POLES:2
POLES 2:4
NUMBER SPEEDS:2
RPM:3450
RPM 2:1725
HERTZ:60
VOLTS PRIMARY:230 V
VOLTS :230
FRME :48
SHAFT CODE:Y
STATOR DIAMETER:5.5
STACK:3.5
MOUNTING:THRU BOLT W/BASE
MOTOR TYPE:FHP
OPPOSITE END BEARING:BALL
SHAFT END BEARING:BALL
AMBIENT:50
ROTATION:CCW DRIVE END
SERVICE FACTOR:1
STARTCAPMFD:198
SHIPPING WEIGHT:26
THERMAL PROTECTION:AUTOMATIC RESET
BREAKDOWN TORQUE:31.42
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:30.56
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:F
KVA CODE LETTER:A
LOCKED ROTOR AMPS:15.62
SERVICE FACTOR AMPS PRIMARY:8.0/2.5
