country_of_origin:
TW
manufacturer:
US Motors
mpn:
AGL75FL1
Product Description

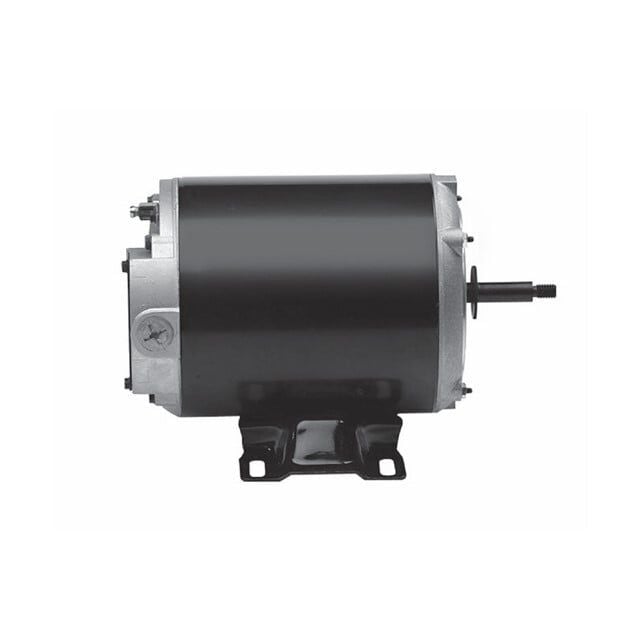

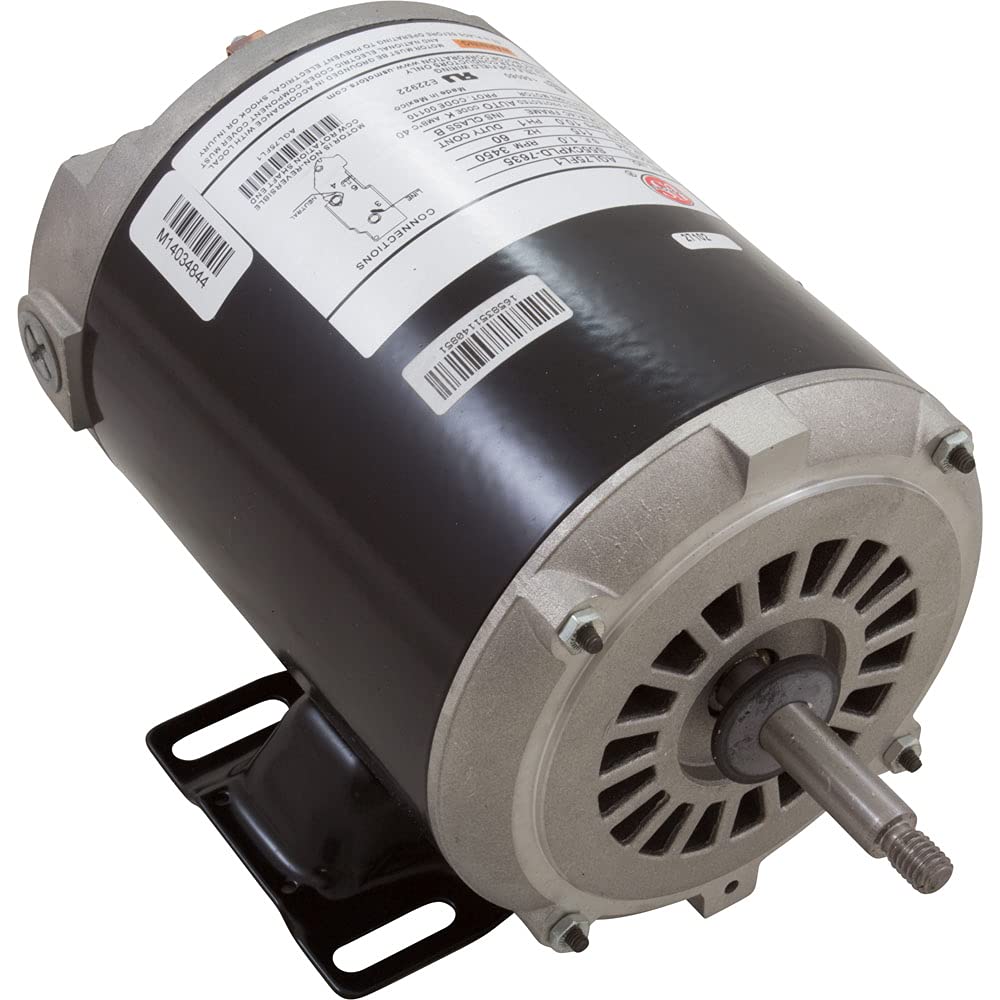

US Motors - AGL75FL1
Features- Thru-Bolt Pool Spa Motors
- 5.5" Frame Diameter
- Single Speed
Additional Information
PHASETYPE:1_SPLIT PHASE
MOTOR ENCLOSURE:ODP
HORSEPOWER:.75
KILOWATTS:0.6
POLES:2
NUMBER SPEEDS:1
RPM:3450
HERTZ:60
VOLTS PRIMARY:115 V
VOLTS :115
FRME :48
SHAFT CODE:Y
STATOR DIAMETER:5.5
STACK:1.5
MOUNTING:THRU BOLT W/BASE
MOTOR TYPE:FHP
OPPOSITE END BEARING:6203
SHAFT END BEARING:6203
AMBIENT:40
ROTATION:CCW DRIVE END
SERVICE FACTOR:1
SHIPPING WEIGHT:17
THERMAL PROTECTION:AUTOMATIC RESET
BREAKDOWN TORQUE:40.98
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:15.04
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:B
KVA CODE LETTER:K
LOCKED ROTOR AMPS:53.3
FULL LOAD AMPS PRIMARY:10.0
