country_of_origin:
TW
manufacturer:
US Motors
mpn:
C200P1FS
Product Description

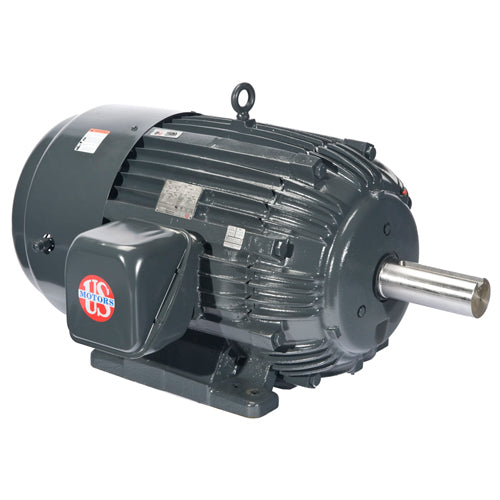

US Motors - C200P1FS
Features- General Purpose
- Three Phase Totally Enclosed Fan Cooled (TEFC)
- CORRO-DUTY®
- NEMA® Premium Efficient
Additional Information
PHASETYPE:3_PHASE
MOTOR ENCLOSURE:TEFC
HORSEPOWER:200
KILOWATTS:149.1
POLES:2
NUMBER SPEEDS:1
RPM:3575
RPM 4:2960
HERTZ:60
HERTZ 2:50
VOLTS PRIMARY:460
VOLTS :460
VOLTS 4:380
FRME :447
SHAFT CODE:TS
MOUNTING:HORZ-FOOTED
ASSEMBLY POSITION:F1
MOTOR TYPE:TCE
OPPOSITE END BEARING:6313-J/C3
SHAFT END BEARING:6313-J/C3
AMBIENT:40
ROTATION:DUAL
SERVICE FACTOR:1.15
STARTCAPMFD:N\A
SHIPPING WEIGHT:2100
BREAKDOWN TORQUE:276
BREAKDOWN TORQUE UOM:PERCENT OF FLT
LOCKED ROTOR TORQUE:146
LOCKED ROTOR TORQUE UOM:PERCENT OF FLT
INSULATION CLASS:F
KVA CODE LETTER:G
LOCKED ROTOR AMPS:1566
NEMA NOMINAL EFFICIENCY:96.2
FULL LOAD AMPS PRIMARY:216
SERVICE FACTOR AMPS PRIMARY:249
