country_of_origin:
TW
manufacturer:
US Motors
mpn:
D125V2C
Product Description

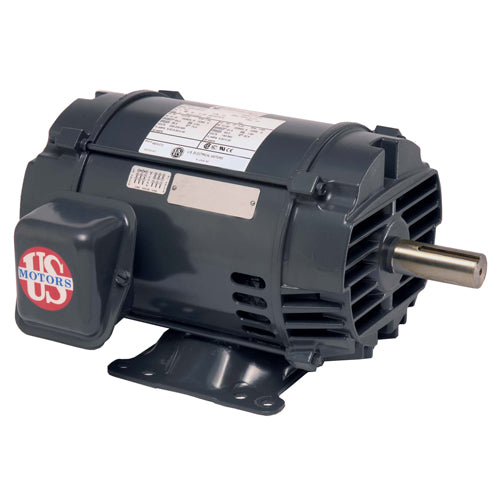

US Motors - D125V2C
Features- Definite Purpose ACCU-SERIES„¢
- Three Phase Open Dripproof (ODP)
- Inverter Duty
- 20:1 (3-60 HZ) Speed Range Variable Torque
- 5:1 (12-60 Hz) Speed Range Constant Torque
Additional Information
PHASETYPE:3_PHASE
MOTOR ENCLOSURE:ODP
HORSEPOWER:125
KILOWATTS:93.2
POLES:4
NUMBER SPEEDS:1
RPM:1780
HERTZ:60
VOLTS PRIMARY:460
VOLTS :460
FRME :405
SHAFT CODE:T
MOUNTING:HORZ-FOOTED
ASSEMBLY POSITION:F1
MOTOR TYPE:RI
OPPOSITE END BEARING:6212-2Z-J
SHAFT END BEARING:5215-A
AMBIENT:40
SERVICE FACTOR:1.15
STARTCAPMFD:N\A
SHIPPING WEIGHT:800
BREAKDOWN TORQUE:213
BREAKDOWN TORQUE UOM:PERCENT OF FLT
LOCKED ROTOR TORQUE:178
LOCKED ROTOR TORQUE UOM:PERCENT OF FLT
INSULATION CLASS:F
KVA CODE LETTER:F
LOCKED ROTOR AMPS:910
NEMA NOMINAL EFFICIENCY:95.4
FULL LOAD AMPS PRIMARY:140
SERVICE FACTOR AMPS PRIMARY:162
