availability:
In stock
enclosure:
ODP
frame:
56
horsepower:
0.33
mpn:
D13CPA3P9
phase:
1
rpm:
950-1200
voltage:
100-120, 200-240

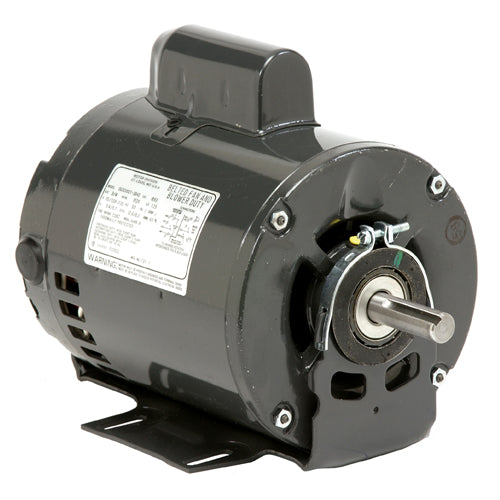

Product Description
- Capacitor Start Capacitor Run
- General Purpose
- Open Dripproof (ODP)
- Single Speed
- Resilient Base
Specifications
| Model_Number | T055CRP1543012B |
|---|---|
| PRODUCT NAME | .33 HP - ODP - 1140 |
| PHASETYPE | 1_CAPACITOR START - |
| MOTOR ENCLOSURE | ODP |
| HORSEPOWER | .33 |
| KILOWATTS | 0.3 |
| POLES | 6 |
| NUMBER SPEEDS | 1 |
| RPM | 1140 |
| HERTZ | 60 |
| VOLTS PRIMARY | 115/230 V |
| VOLTS | 115 |
| VOLTS 2 | 230 |
| FRME | 56 |
| SHAFT CODE | H |
| STATOR DIAMETER | 5.5 |
| STACK | 3.5 |
| MOUNTING | CRADLE |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | 6203 |
| SHAFT END BEARING | 6203 |
| AMBIENT | 40 |
| ROTATION | CW/CCW |
| SERVICE FACTOR | 1.35 |
| RUNCAPMFD | 35 |
| RUNCAPVOLTS | 370 |
| STARTCAPMFD | 208 |
| SHIPPING WEIGHT | 26 |
| THERMAL PROTECTION | AUTOMATIC RESET |
| BREAKDOWN TORQUE | 69.24 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 96.1 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| INSULATION CLASS | B |
| KVA CODE LETTER | K |
| LOCKED ROTOR AMPS | 23.07 |
| NEMA NOMINAL EFFICIENCY | 66.6 |
| FULL LOAD AMPS PRIMARY | 4.4/2.3 |
| SERVICE FACTOR AMPS PRIMARY | 5.3/2.7 |
