country_of_origin:
TW
manufacturer:
US Motors
mpn:
D60P2ES
Product Description

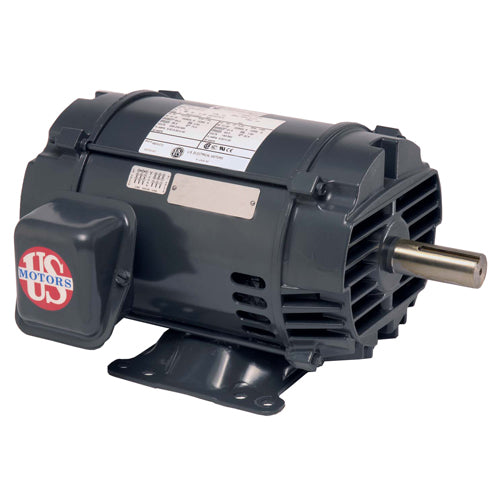

US Motors - D60P2ES
Features- Three Phase
- General Purpose
- Open Dripproof (ODP)
- NEMA Premium Efficient
- Rigid Base
Additional Information
PHASETYPE:3_PHASE
MOTOR ENCLOSURE:ODP
HORSEPOWER:60
KILOWATTS:44.7
POLES:4
NUMBER SPEEDS:1
RPM:1780
RPM 2:1780
RPM 4:1480
RPM 5:1480
HERTZ:60
HERTZ 2:50
VOLTS PRIMARY:230/460
VOLTS :460
VOLTS 2:230
VOLTS 4:400
VOLTS 5:200
FRME :364
SHAFT CODE:TS
MOUNTING:HORZ-FOOTED
ASSEMBLY POSITION:F1
MOTOR TYPE:DE
OPPOSITE END BEARING:6212-2Z-J/C3
SHAFT END BEARING:6212-2Z-J/C3
AMBIENT:40
SERVICE FACTOR:1.15
STARTCAPMFD:N\A
SHIPPING WEIGHT:545
BREAKDOWN TORQUE:246
BREAKDOWN TORQUE UOM:PERCENT OF FLT
LOCKED ROTOR TORQUE:200
LOCKED ROTOR TORQUE UOM:PERCENT OF FLT
INSULATION CLASS:F
KVA CODE LETTER:G
LOCKED ROTOR AMPS:433
NEMA NOMINAL EFFICIENCY:95
FULL LOAD AMPS PRIMARY:139/69
SERVICE FACTOR AMPS PRIMARY:160/80
