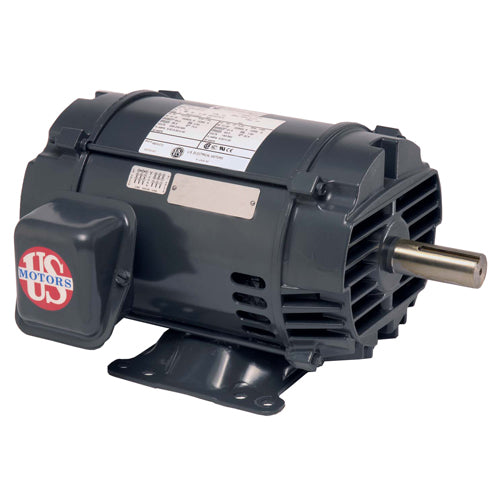

US Motors D75V2B ODP NEMA Frame Horizontal Inverter Duty Motors, Stock

Back Order

Get it by Fri, May 23 - Wed, May 28

SKU SKU:kpi013-D75V2B

(0 rating)

$5,451.35 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

View full details

30-day returns
Fast shipping
Secure payments
Over 300,000 products

country_of_origin: TW

manufacturer: US Motors

mpn: D75V2B

Product Description

US Motors - D75V2B

Features

Definite Purpose ACCU-SERIES„¢
Three Phase Open Dripproof (ODP)
Inverter Duty
20:1 (3-60 HZ) Speed Range Variable Torque
5:1 (12-60 Hz) Speed Range Constant Torque

Additional Information

PHASETYPE:3_PHASE

MOTOR ENCLOSURE:ODP

HORSEPOWER:75

KILOWATTS:55.9

POLES:4

NUMBER SPEEDS:1

RPM:1780

RPM 2:1780

HERTZ:60

VOLTS PRIMARY:230/460

VOLTS :460

VOLTS 2:230

FRME :365

SHAFT CODE:T

MOUNTING:HORZ-FOOTED

ASSEMBLY POSITION:F1

MOTOR TYPE:DI

OPPOSITE END BEARING:6212-2Z-J/C3

SHAFT END BEARING:6313-2Z-J/C3

AMBIENT:40

SERVICE FACTOR:1.15

STARTCAPMFD:N\A

SHIPPING WEIGHT:575

BREAKDOWN TORQUE:253

BREAKDOWN TORQUE UOM:PERCENT OF FLT

LOCKED ROTOR TORQUE:229

LOCKED ROTOR TORQUE UOM:PERCENT OF FLT

INSULATION CLASS:F

KVA CODE LETTER:G

LOCKED ROTOR AMPS:568.6

NEMA NOMINAL EFFICIENCY:95

FULL LOAD AMPS PRIMARY:175/87

SERVICE FACTOR AMPS PRIMARY:201/100
