country_of_origin:
TW
manufacturer:
US Motors
mpn:
EH281
Product Description

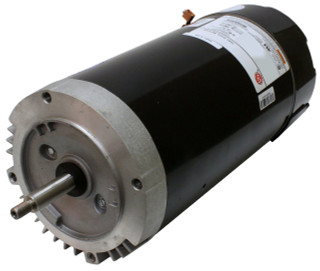

US Motors - EH281
Features- Three Phase Pool Spa
- Square C-Face Flange
- C-Flange Keyed Threaded Shaft Full Service Factor Full Rated
Additional Information
PHASETYPE:3_POLYPHASE
MOTOR ENCLOSURE:ODP
HORSEPOWER:.5
KILOWATTS:0.4
POLES:2
NUMBER SPEEDS:1
RPM:3450
RPM 2:2850
HERTZ:60
HERTZ 2:50
VOLTS PRIMARY:208-230/460 V
VOLTS :208
VOLTS 2:230
VOLTS 3:460
FRME :56
SHAFT CODE:C
STATOR DIAMETER:6.3
STACK:1.375
MOUNTING:C-FACE
MOTOR TYPE:FHP
OPPOSITE END BEARING:BALL
SHAFT END BEARING:BALL
AMBIENT:40
ROTATION:CCW DRIVE END REV
SERVICE FACTOR:1.6
SHIPPING WEIGHT:1
THERMAL PROTECTION:NONE
BREAKDOWN TORQUE:59
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:33.65
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:B
KVA CODE LETTER:M
LOCKED ROTOR AMPS:11.99
SERVICE FACTOR AMPS PRIMARY:2.7-2.4/1.2
