US Motors

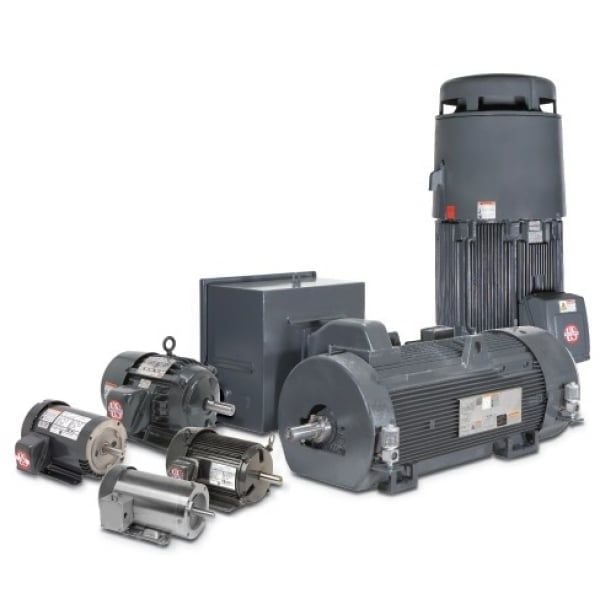

US Motors EH617 Fractional, Pool and Spa Motors

US Motors EH617 Fractional, Pool and Spa Motors

Dropship

SKU SKU:kpi013-EH617

Regular price $421.03 USD
Regular price Sale price $421.03 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products

Product details

manufacturer: US Motors
mpn: EH617
Features
  • Three Phase Pool & Spa
  • Square & C-Face Flange
  • C-Flange Keyed & Threaded Shaft Full Service Factor Full Rated

Additional Information

PHASETYPE:3_POLYPHASE
MOTOR ENCLOSURE:ODP
HORSEPOWER:1.5
KILOWATTS:1.1
POLES:2
NUMBER SPEEDS:1
RPM:3450
RPM 2:2850
HERTZ:60
HERTZ 2:50
VOLTS PRIMARY:208-230/460 V
VOLTS :208
VOLTS 2:230
VOLTS 3:460
FRME :56
SHAFT CODE:J
STATOR DIAMETER:6.3
STACK:1.75
MOUNTING:C-FACE
MOTOR TYPE:FHP
OPPOSITE END BEARING:BALL
SHAFT END BEARING:BALL
AMBIENT:50
ROTATION:CCW DRIVE END REV
SERVICE FACTOR:1.3
SHIPPING WEIGHT:27
THERMAL PROTECTION:NONE
BREAKDOWN TORQUE:41.68
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:23.51
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:B
KVA CODE LETTER:M
LOCKED ROTOR AMPS:8.42
SERVICE FACTOR AMPS PRIMARY:6.0-5.8/2.9
