Product Description

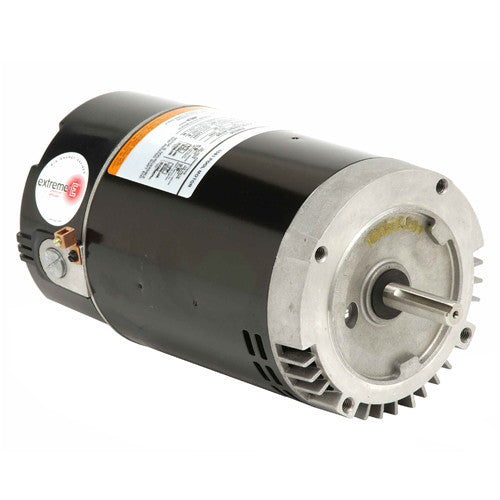

US Motors - EH704
Features- Three Phase Pool Spa
- Square C-Face Flange
- C-Flange Keyed Threaded Shaft Full Service Factor Full Rated
Additional Information
PHASETYPE:3_POLYPHASE
MOTOR ENCLOSURE:ODP
HORSEPOWER:2
KILOWATTS:1.5
POLES:2
NUMBER SPEEDS:1
RPM:3450
RPM 2:2850
HERTZ:60
HERTZ 2:50
VOLTS PRIMARY:208-230/460 V
VOLTS :208
VOLTS 2:230
VOLTS 3:460
FRME :56
SHAFT CODE:C
STATOR DIAMETER:6.3
STACK:2.25
MOUNTING:C-FACE
MOTOR TYPE:000
OPPOSITE END BEARING:BALL
SHAFT END BEARING:BALL
AMBIENT:50
ROTATION:CW LEAD END REV
SERVICE FACTOR:1.2
SHIPPING WEIGHT:32
THERMAL PROTECTION:NONE
BREAKDOWN TORQUE:197.5
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:107.9
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:B
KVA CODE LETTER:L
LOCKED ROTOR AMPS:38.82
SERVICE FACTOR AMPS PRIMARY:6.6-6.4/3.2
