country_of_origin:
TW
manufacturer:
US Motors
mpn:
EST1052
Features

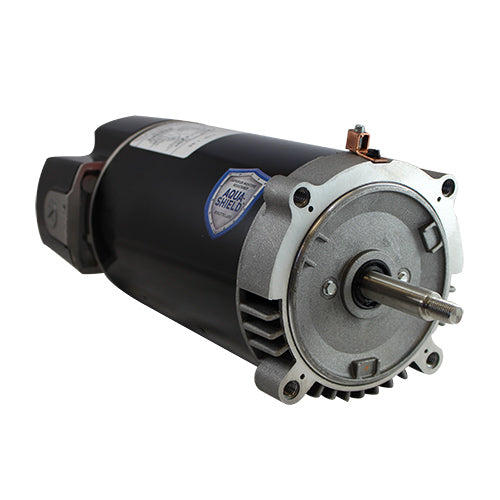

- AQUA-SHIELD EZ48 Pool & Spa Motor
- Switch Design 5.5" Frame Dia.
- C-Flange Category "J"
- Standard Efficient 7/16-20 Thread
- THP Rated 1081 Design
Additional Information
PHASETYPE:1_CAPACITOR START
MOTOR ENCLOSURE:ODP
HORSEPOWER:.5
KILOWATTS:0.4
POLES:2
NUMBER SPEEDS:1
RPM:3450
HERTZ:60
VOLTS PRIMARY:230/115 V
VOLTS :230
VOLTS 2:115
FRME :56
SHAFT CODE:J
STACK:1.75
MOUNTING:C-FACE
MOTOR TYPE:FHP
OPPOSITE END BEARING:BALL
SHAFT END BEARING:BALL
AMBIENT:50
ROTATION:CCW DRIVE END
SERVICE FACTOR:1.6
STARTCAPMFD:198.45
SHIPPING WEIGHT:19
THERMAL PROTECTION:AUTOMATIC RESET
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:B
KVA CODE LETTER:L
SERVICE FACTOR AMPS PRIMARY:5.0/10.0
