availability:
In stock
frame:
48
horsepower:
0.75
mpn:
EZBN36
phase:
1
rpm:
2800-3600, 1400-1800
voltage:
100-120
Product Description

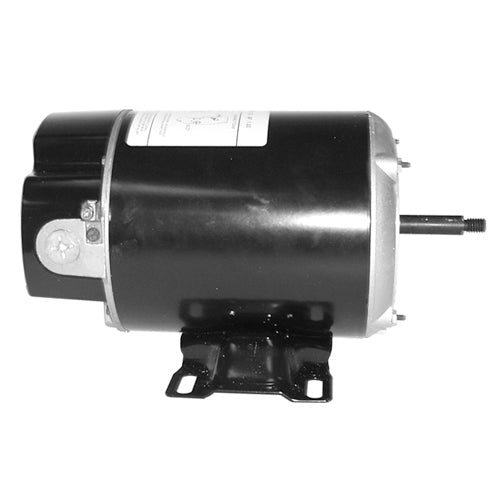

- EZ48® Thru-Bolt Pool & Spa Motors
- 5.5" Frame Diameter
- Two Speed - 1.5 Compartment
Specifications
| Model_Number | S055RJE8051013J |
|---|---|
| PRODUCT NAME | .75 HP - - 3450 |
| PHASETYPE | 1_PHASE |
| HORSEPOWER | .75 |
| HORSEPOWER 2 | 0.1 |
| KILOWATTS | 0.6 |
| POLES | 2 |
| POLES 2 | 4 |
| NUMBER SPEEDS | 2 |
| RPM | 3450 |
| RPM 2 | 1725 |
| HERTZ | 60 |
| VOLTS PRIMARY | 115 |
| VOLTS | 115 |
| FRME | 48 |
| SHAFT CODE | Y |
| STATOR DIAMETER | 5.5 |
| STACK | 1.75 |
| MOTOR TYPE | FHP |
| AMBIENT | 50 |
| ROTATION | CCW DRIVE END |
| SERVICE FACTOR | 1 |
| SHIPPING WEIGHT | 17 |
| BREAKDOWN TORQUE | 38.43 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 16.01 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| KVA CODE LETTER | K |
| LOCKED ROTOR AMPS | 45.47 |
| FULL LOAD AMPS PRIMARY | 9.8/3.2 |
