country_of_origin:
TW
manufacturer:
US Motors
mpn:
FD1CM2PHC
Product Description

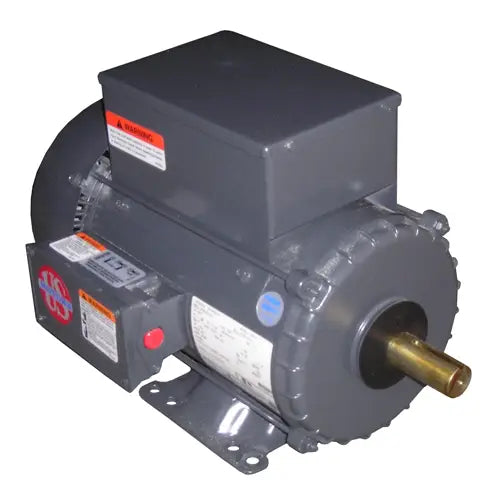

US Motors - FD1CM2PHC
Features- Special Application Farm
- Totally Enclosed Fan Cooled (TEFC)
- Agri Duty High Torque
- Single Phase Capacitor Start
- C-Face Footed
Additional Information
PHASETYPE:1_CAPACITOR START
MOTOR ENCLOSURE:TEFC
HORSEPOWER:1
KILOWATTS:0.8
POLES:4
NUMBER SPEEDS:1
RPM:1725
HERTZ:60
VOLTS PRIMARY:115/230 V
VOLTS :115
VOLTS 2:230
FRME :56
SHAFT CODE:HC
STATOR DIAMETER:6.3
STACK:3.25
MOUNTING:RIGID
MOTOR TYPE:FHP
OPPOSITE END BEARING:6203
SHAFT END BEARING:6203
AMBIENT:40
ROTATION:REVERSIBLE
SERVICE FACTOR:1.15
STARTCAPMFD:594
SHIPPING WEIGHT:35
THERMAL PROTECTION:MANUAL RESET
BREAKDOWN TORQUE:145.6
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:193.1
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:F
KVA CODE LETTER:K
LOCKED ROTOR AMPS:68.41
NEMA NOMINAL EFFICIENCY:71.4
FULL LOAD AMPS PRIMARY:14.0/7.0
SERVICE FACTOR AMPS PRIMARY:14.6/7.3
