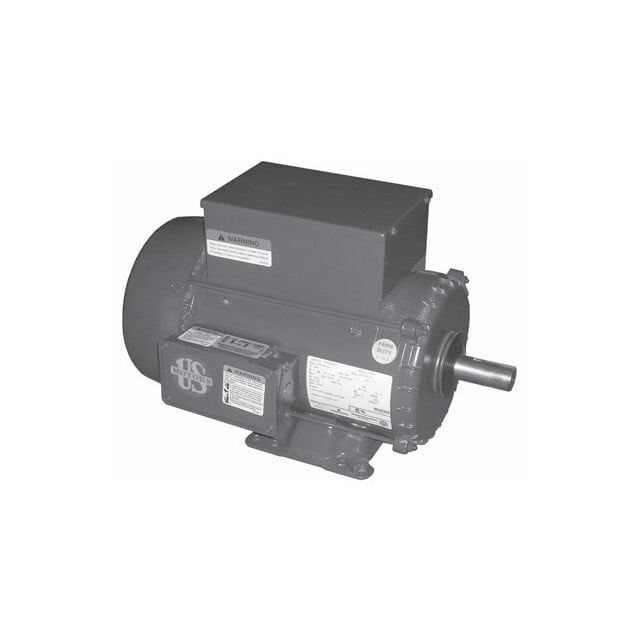

US Motors FD2CM2PHC Fractional Motor Program

US Motors FD2CM2PHC Fractional Motor Program

Dropship

Get it by Sat, Dec 14 - Thu, Dec 19

SKU SKU:kpi013-FD2CM2PHC

Regular price $605.44 USD
Regular price Sale price $605.44 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
country_of_origin: TW
manufacturer: US Motors
mpn: FD2CM2PHC

Product Description

US Motors - FD2CM2PHC

Features
  • Special Application Farm
  • Totally Enclosed Fan Cooled (TEFC)
  • Agri Duty High Torque
  • Single Phase Capacitor Start
  • C-Face Footed

Additional Information

PHASETYPE:1_CAPACITOR START -
MOTOR ENCLOSURE:TEFC
HORSEPOWER:2
KILOWATTS:1.5
POLES:4
NUMBER SPEEDS:1
RPM:1725
HERTZ:60
VOLTS PRIMARY:115/230 V
VOLTS :115
VOLTS 2:230
FRME :145
SHAFT CODE:TC
STATOR DIAMETER:6.3
STACK:4.25
MOUNTING:C-FACE
MOTOR TYPE:FHP
OPPOSITE END BEARING:6205
SHAFT END BEARING:6203
AMBIENT:40
ROTATION:REVERSIBLE
SERVICE FACTOR:1.15
RUNCAPMFD:60
RUNCAPVOLTS:280
STARTCAPMFD:896
SHIPPING WEIGHT:32
THERMAL PROTECTION:MANUAL RESET
BREAKDOWN TORQUE:230.7
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:331.9
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:F
KVA CODE LETTER:H
LOCKED ROTOR AMPS:113.8
NEMA NOMINAL EFFICIENCY:81.5
FULL LOAD AMPS PRIMARY:18.9/9.4
SERVICE FACTOR AMPS PRIMARY:18.9/9.4
